Step1: Product
GAPTEC Electronic 150QBW4_4824S2.25

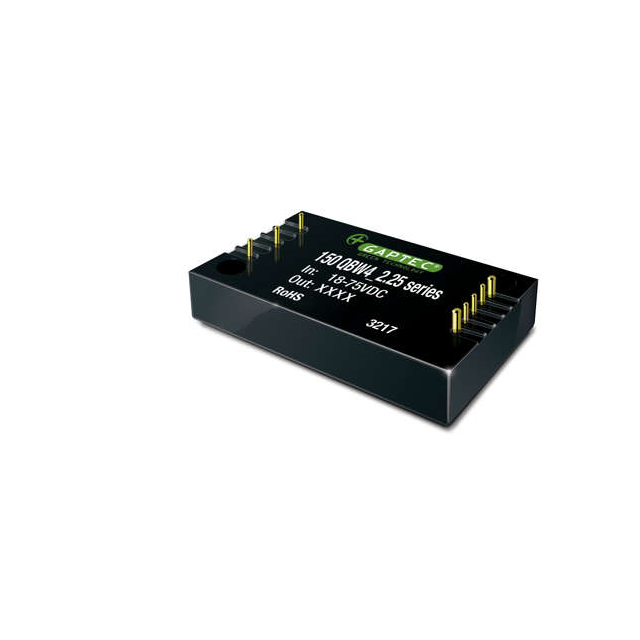

Image shown is a representation only
Manufacturer
Manufacturer No
150QBW4_4824S2.25
Package
Quarter Brick
Packaging
Retail Package
Description
ISOLATED MODULE DC DC CONVERTERS
Detailed Description
Isolated Module DC DC Converter 1 Output 24V 6.25A 18V - 75V Input
DataSheet
Mfr
GAPTEC Electronic
Type
Isolated Module
Series
150QBW4_2.25 (150W)
Features
Remote Sense
Packaging
Retail Package
Efficiency
91%
Part Status
Obsolete
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
150 W
Package / Case
Quarter Brick
Approval Agency
CE
Size / Dimension
2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm)
Number of Outputs
1
Voltage - Output 1
24V
Voltage - Isolation
2.25 kV
Operating Temperature
-40°C ~ 85°C (With Derating)
Voltage - Input (Max)
75V
Voltage - Input (Min)
18V
Current - Output (Max)
6.25A
Supplier Device Package
Quarter Brick
| Attribute | Value |
|---|---|
| Mfr | GAPTEC Electronic |
| Type | Isolated Module |
| Series | 150QBW4_2.25 (150W) |
| Features | Remote Sense |
| Packaging | Retail Package |
| Efficiency | 91% |
| Part Status | Obsolete |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 150 W |
| Package / Case | Quarter Brick |
| Approval Agency | CE |
| Size / Dimension | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Isolation | 2.25 kV |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Voltage - Input (Max) | 75V |
| Voltage - Input (Min) | 18V |
| Current - Output (Max) | 6.25A |
| Supplier Device Package | Quarter Brick |
