Step1: Product

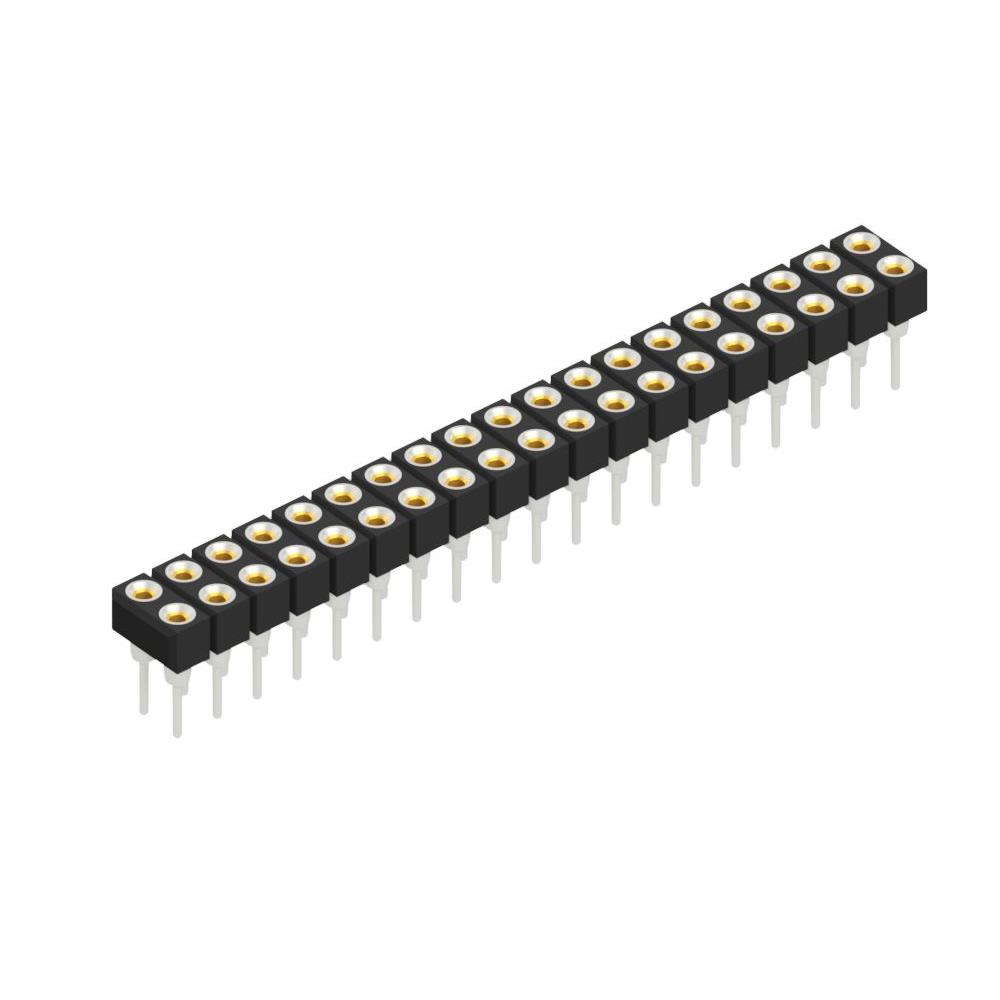

Fischer Elektronik MK 201 38 Z
Image shown is a representation only
Manufacturer
Manufacturer No
MK 201 38 Z
Packaging
Bulk
Description
for 0.5 mm
Detailed Description
38 Position Header Connector 0.100" (2.54mm) Through Hole Gold
DataSheet
Mfr
Fischer Elektronik
Series
MK 201
Packaging
Bulk
Part Status
Active
Termination
Solder
Contact Type
Precision
Mounting Type
Through Hole
Connector Type
Header
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
60VDC
Contact Material
Beryllium Copper
Insulation Height
0.098" (2.50mm)
Number of Positions
38
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.138" (3.50mm)
Current Rating (Amps)
1.5A
Operating Temperature
-40°C ~ 163°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
157.5µin (4.00µm)
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | Fischer Elektronik |
| Series | MK 201 |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Precision |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 60VDC |
| Contact Material | Beryllium Copper |
| Insulation Height | 0.098" (2.50mm) |
| Number of Positions | 38 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.138" (3.50mm) |
| Current Rating (Amps) | 1.5A |
| Operating Temperature | -40°C ~ 163°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 157.5µin (4.00µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
