Step1: Product

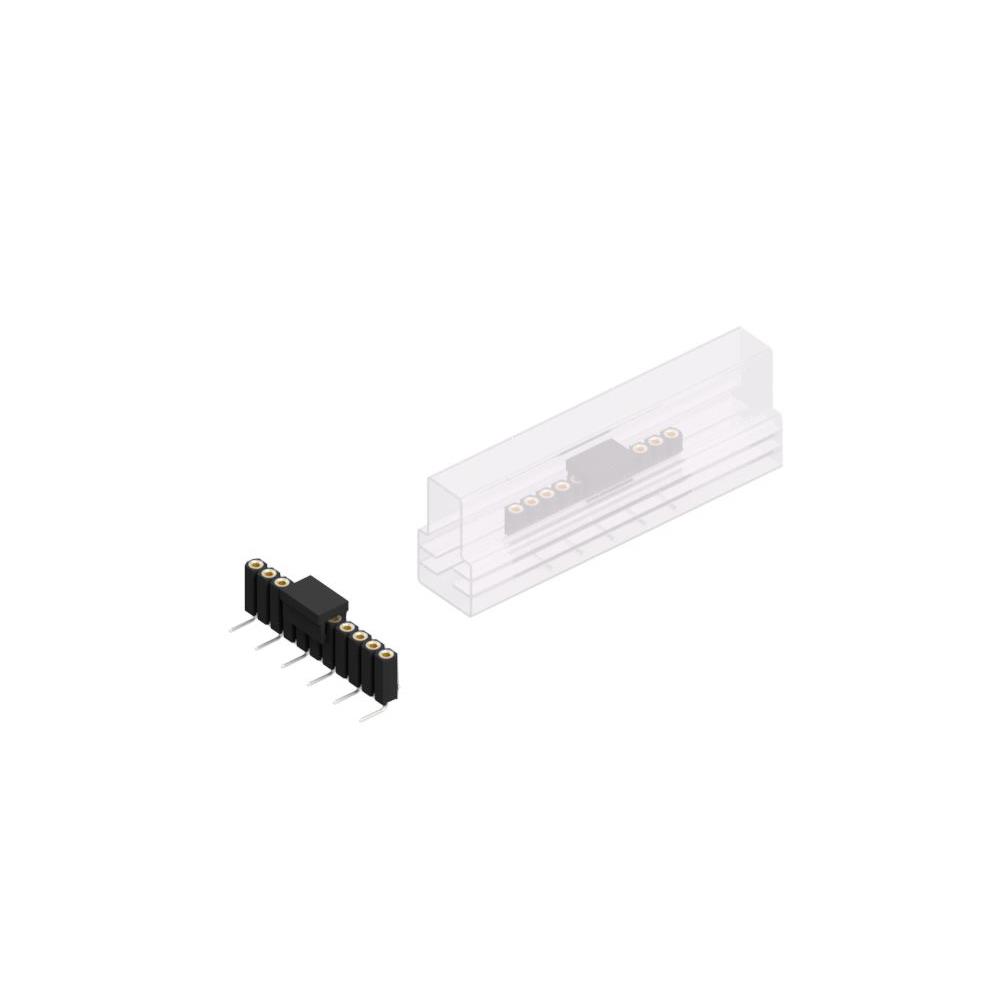

Fischer Elektronik BL 15 SMD 089 11 B SM
Image shown is a representation only
Manufacturer
Manufacturer No
BL 15 SMD 089 11 B SM
Packaging
Tube
Description
for 0.635 mm and up to 0.85 mm
Detailed Description
11 Position Header Connector 0.100" (2.54mm) Surface Mount Gold
DataSheet
Mfr
Fischer Elektronik
Series
BL 15 SMD 089
Packaging
Tube
Part Status
Active
Termination
Solder
Contact Type
Precision
Mounting Type
Surface Mount
Connector Type
Header
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
150VDC
Contact Material
Beryllium Copper
Insulation Height
0.276" (7.00mm)
Number of Positions
11
Contact Finish - Post
Tin
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 163°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
157.5µin (4.00µm)
Contact Finish Thickness - Mating
29.5µin (0.75µm)
| Attribute | Value |
|---|---|
| Mfr | Fischer Elektronik |
| Series | BL 15 SMD 089 |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Precision |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 150VDC |
| Contact Material | Beryllium Copper |
| Insulation Height | 0.276" (7.00mm) |
| Number of Positions | 11 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 163°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 157.5µin (4.00µm) |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
