Step1: Product

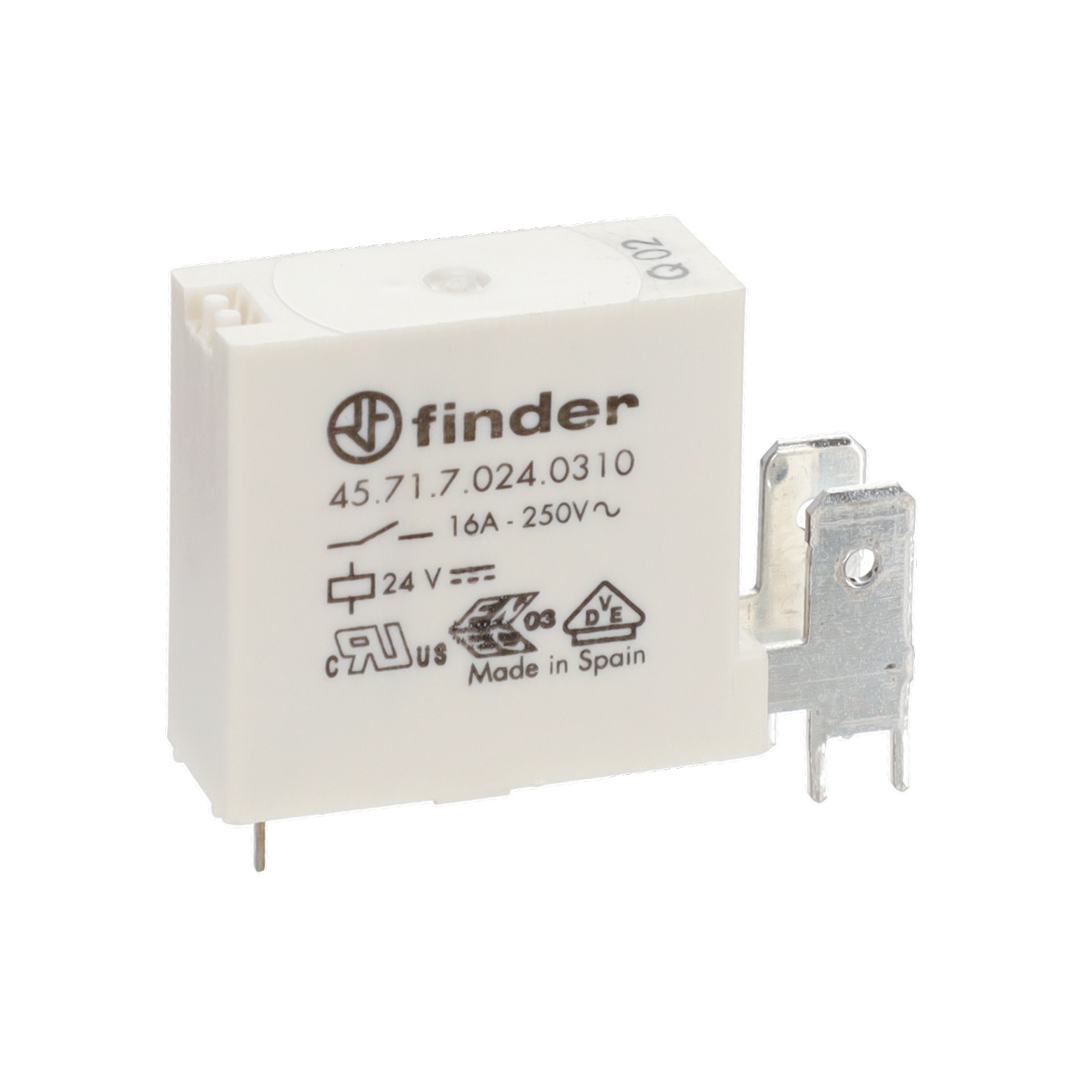

Finder Relays, Inc. 45.71.7.024.0310
Image shown is a representation only
Manufacturer
Manufacturer No
45.71.7.024.0310
Packaging
Box
Description
RELAY GEN PURPOSE SPST 16A 24V
Detailed Description
General Purpose Relay SPST-NC (1 Form B) 24VDC Coil Through Hole
DataSheet
Mfr
Finder Relays, Inc.
Series
45
Coil Type
Non Latching
Packaging
Box
Relay Type
General Purpose
Part Status
Active
Seal Rating
Sealed - Flux Protection
Coil Current
15 mA
Coil Voltage
24VDC
Contact Form
SPST-NC (1 Form B)
Operate Time
10 ms
Release Time
2 ms
Mounting Type
Through Hole
Approval Agency
cURus, EAC, ENEC, VDE
Coil Resistance
1.6 kOhms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
400VAC - Max
Termination Style
PC Pin, Quick Connect - 0.250" (6.3mm)
Base Product Number
45.71.7
Load - Max Switching
6400VA
Must Operate Voltage
16.8 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
16 A
| Attribute | Value |
|---|---|
| Mfr | Finder Relays, Inc. |
| Series | 45 |
| Coil Type | Non Latching |
| Packaging | Box |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Flux Protection |
| Coil Current | 15 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NC (1 Form B) |
| Operate Time | 10 ms |
| Release Time | 2 ms |
| Mounting Type | Through Hole |
| Approval Agency | cURus, EAC, ENEC, VDE |
| Coil Resistance | 1.6 kOhms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 400VAC - Max |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Base Product Number | 45.71.7 |
| Load - Max Switching | 6400VA |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 16 A |
