Step1: Product

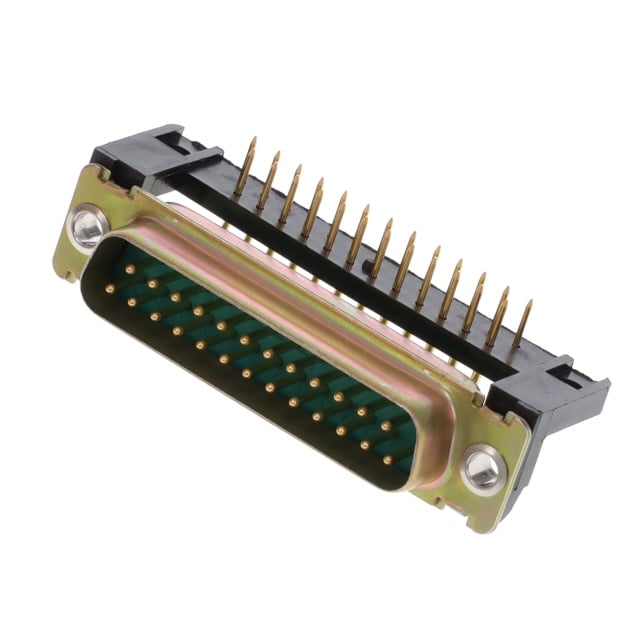

FCI Deutschland GmbH DBM25P500N
Image shown is a representation only
Manufacturer
Manufacturer No
DBM25P500N
Packaging
Tray
Description
DSUB DM SIG STB 25 PIN
Detailed Description
25 Position D-Sub Plug, Male Pins Connector
DataSheet
Mfr
FCI Deutschland GmbH
Series
DM HE508
Packaging
Tray
Part Status
Active
Termination
Solder
Contact Form
Machined
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
300V
Backset Spacing
0.406" (10.30mm)
Connector Style
D-Sub
Contact Material
Brass
Dielectric Material
Thermoplastic
Number of Positions
25
Current Rating (Amps)
7.5A per Contact
Operating Temperature
-55°C ~ 155°C
Shell Material, Finish
Steel, Yellow Cadmium Plated
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B)
| Attribute | Value |
|---|---|
| Mfr | FCI Deutschland GmbH |
| Series | DM HE508 |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Contact Form | Machined |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 300V |
| Backset Spacing | 0.406" (10.30mm) |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Dielectric Material | Thermoplastic |
| Number of Positions | 25 |
| Current Rating (Amps) | 7.5A per Contact |
| Operating Temperature | -55°C ~ 155°C |
| Shell Material, Finish | Steel, Yellow Cadmium Plated |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) |
