Step1: Product
fastSiC FF17900J-7

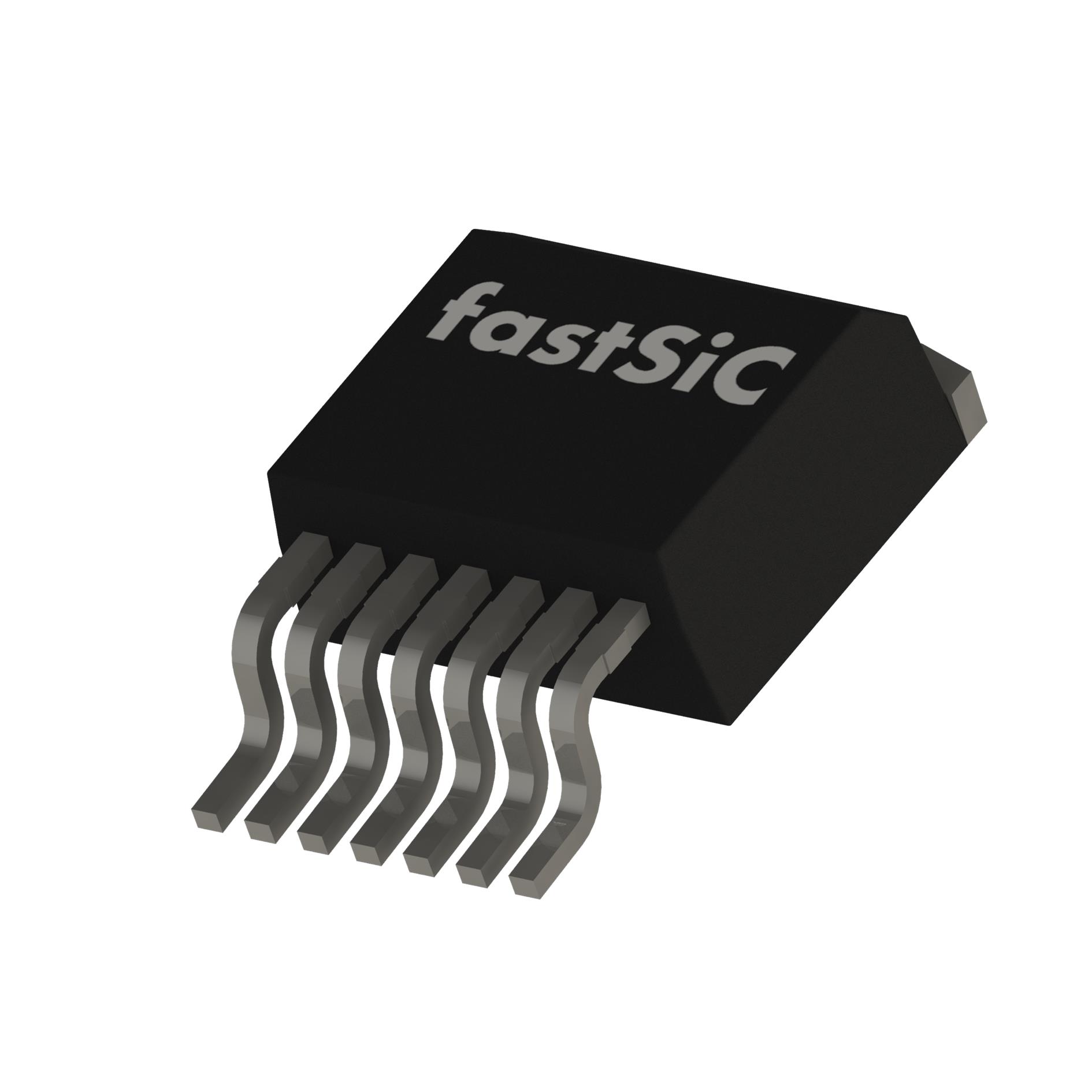

Image shown is a representation only
Manufacturer
Manufacturer No
FF17900J-7
Package
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Packaging
Tape & Reel (TR)
Description
SICFET N-CH 1700V 4.5A TO-263-7L
Detailed Description
N-Channel 1700 V 4.5A (Tc) 83W (Tc) Surface Mount TO-263-7L
DataSheet
Mfr
fastSiC
Series
Falcon
FET Type
N-Channel
Packaging
Tape & Reel (TR)
Vgs (Max)
18V
Technology
SiCFET (Silicon Carbide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Vgs(th) (Max) @ Id
2.5V @ 1mA
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
1.5Ohm @ 500mA, 18V
Power Dissipation (Max)
83W (Tc)
Supplier Device Package
TO-263-7L
Gate Charge (Qg) (Max) @ Vgs
19 nC @ 15 V
Drain to Source Voltage (Vdss)
1700 V
Input Capacitance (Ciss) (Max) @ Vds
266 pF @ 1200 V
Drive Voltage (Max Rds On, Min Rds On)
18V
Current - Continuous Drain (Id) @ 25°C
4.5A (Tc)
| Attribute | Value |
|---|---|
| Mfr | fastSiC |
| Series | Falcon |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR) |
| Vgs (Max) | 18V |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 500mA, 18V |
| Power Dissipation (Max) | 83W (Tc) |
| Supplier Device Package | TO-263-7L |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 15 V |
| Drain to Source Voltage (Vdss) | 1700 V |
| Input Capacitance (Ciss) (Max) @ Vds | 266 pF @ 1200 V |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Tc) |
