Step1: Product

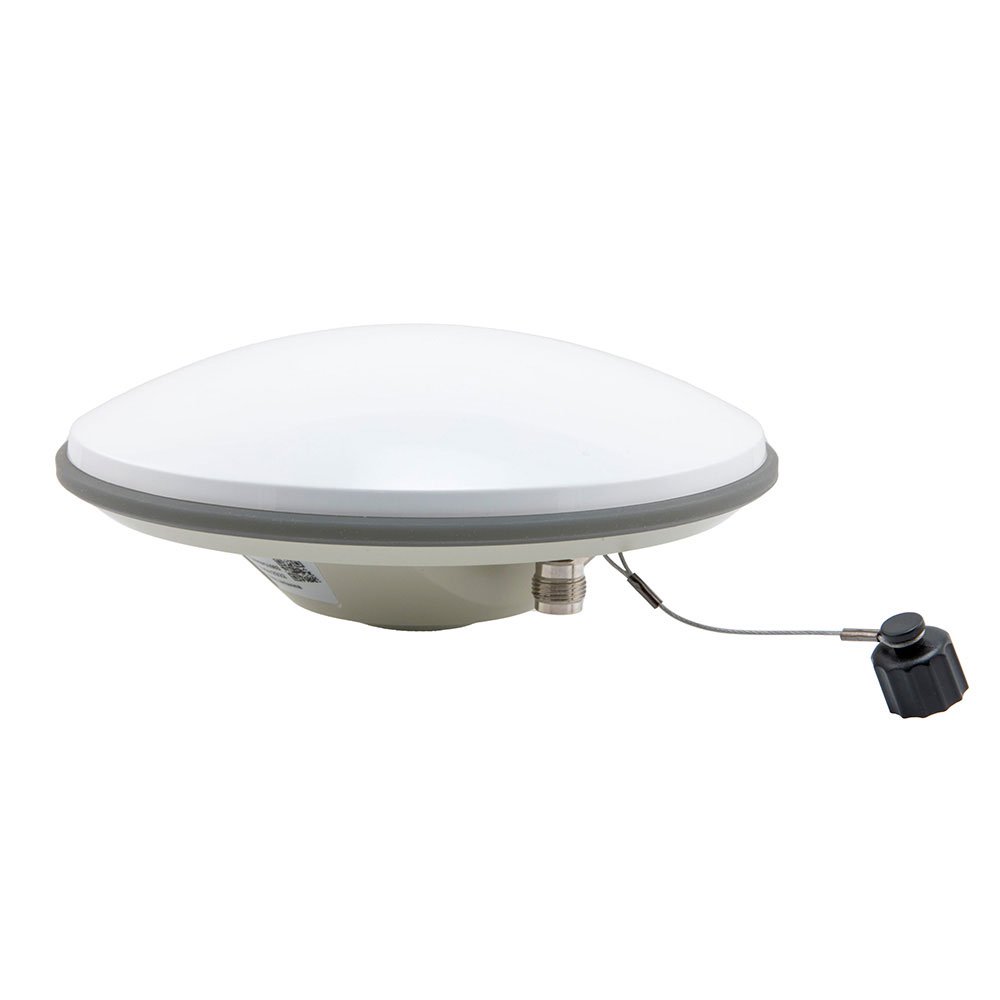

Fairview Microwave FMANGPS1003

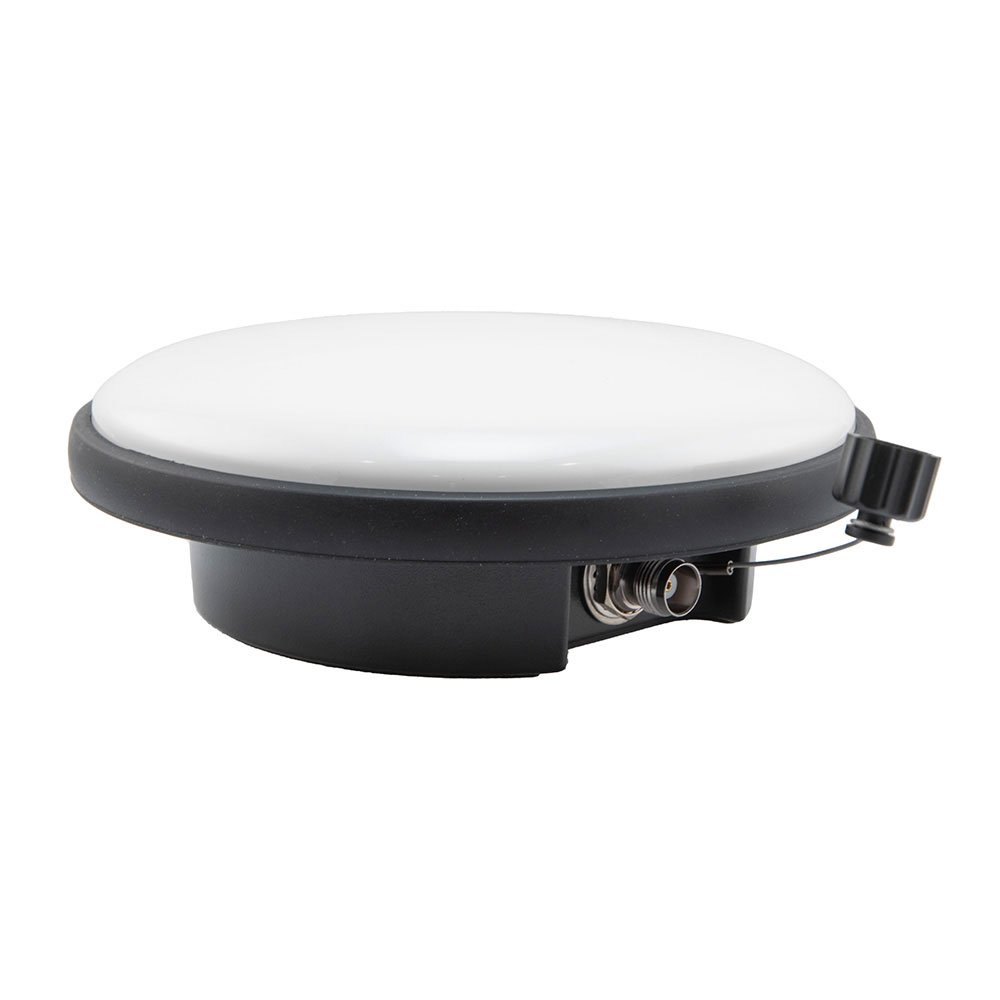

Image shown is a representation only
Manufacturer
Manufacturer No
FMANGPS1003
Packaging
Bag
Description
ANTENNA TNC JACK 1.205 MHZ-1.615
Detailed Description
RF ANTENNA Galileo, GLONASS, GNSS, GPS, QZSS, SBAS Dome TNC Female Panel Mount
DataSheet
Gain
47.5dBi
VSWR
2
Features
Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Packaging
Bag
Part Status
Active
Termination
TNC Female
Antenna Type
Dome
Applications
Galileo, GLONASS, GNSS, GPS, QZSS, SBAS
Height (Max)
2.400" (60.96mm)
Manufacturer
Fairview Microwave
Mounting Type
Panel Mount
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.205GHz ~ 1.615GHz
Number of Bands
1
RF Family/Standard
Navigation
Frequency (Center/Band)
1.41GHz
| Attribute | Value |
|---|---|
| Gain | 47.5dBi |
| VSWR | 2 |
| Features | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m |
| Packaging | Bag |
| Part Status | Active |
| Termination | TNC Female |
| Antenna Type | Dome |
| Applications | Galileo, GLONASS, GNSS, GPS, QZSS, SBAS |
| Height (Max) | 2.400" (60.96mm) |
| Manufacturer | Fairview Microwave |
| Mounting Type | Panel Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.205GHz ~ 1.615GHz |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.41GHz |
