Fairchild Semiconductor NC7SP38P5X

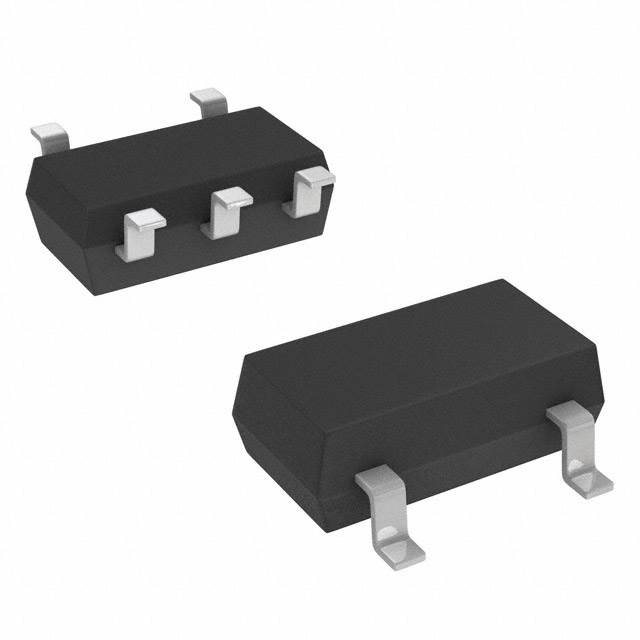

Image shown is a representation only
Manufacturer
Manufacturer No
NC7SP38P5X
Quantity
9
Availability
In Stock
Package
5-TSSOP, SC-70-5, SOT-353
Packaging
Bulk
Description
IC GATE NAND 1CH 2-INP SC70-5
Detailed Description
NAND Gate IC 1 Channel Open Drain SC-70-5
DataSheet
Mfr
Fairchild Semiconductor
Series
7SP
Features
Open Drain
Packaging
Bulk
Logic Type
NAND Gate
Part Status
Active
Mounting Type
Surface Mount
Package / Case
5-TSSOP, SC-70-5, SOT-353
Number of Inputs
2
Voltage - Supply
0.9V ~ 3.6V
Number of Circuits
1
Base Product Number
7SP38
Operating Temperature
-40°C ~ 85°C
Input Logic Level - Low
0.7V ~ 0.9V
Supplier Device Package
SC-70-5
Input Logic Level - High
1.6V ~ 2.1V
Current - Quiescent (Max)
900 nA
Current - Output High, Low
-, 2.6mA
Max Propagation Delay @ V, Max CL
10ns @ 3.3V, 30pF
| Attribute | Value |
|---|---|
| Mfr | Fairchild Semiconductor |
| Series | 7SP |
| Features | Open Drain |
| Packaging | Bulk |
| Logic Type | NAND Gate |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Number of Inputs | 2 |
| Voltage - Supply | 0.9V ~ 3.6V |
| Number of Circuits | 1 |
| Base Product Number | 7SP38 |
| Operating Temperature | -40°C ~ 85°C |
| Input Logic Level - Low | 0.7V ~ 0.9V |
| Supplier Device Package | SC-70-5 |
| Input Logic Level - High | 1.6V ~ 2.1V |
| Current - Quiescent (Max) | 900 nA |
| Current - Output High, Low | -, 2.6mA |
| Max Propagation Delay @ V, Max CL | 10ns @ 3.3V, 30pF |
