Fairchild Semiconductor FDZ2552P

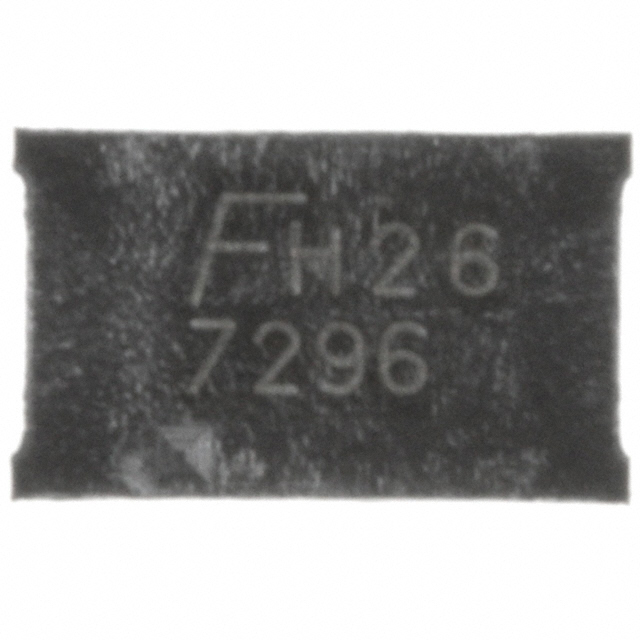

Image shown is a representation only
Manufacturer
Manufacturer No
FDZ2552P
Package
18-WFBGA
Packaging
Bulk
Description
MOSFET 2P-CH 20V 5.5A 18BGA
Detailed Description
Mosfet Array 20V 5.5A (Ta) 2.1W (Ta) Surface Mount 18-BGA (2.5x4)
DataSheet
Series
PowerTrench®
Packaging
Bulk
Technology
MOSFET (Metal Oxide)
Part Status
Active
Power - Max
2.1W (Ta)
Manufacturer
Fairchild Semiconductor
Configuration
2 P-Channel (Dual) Common Drain
Mounting Type
Surface Mount
Package / Case
18-WFBGA
Vgs(th) (Max) @ Id
1.5V @ 250µA
Base Product Number
FDZ25
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
45mOhm @ 5.5A, 4.5V
Supplier Device Package
18-BGA (2.5x4)
Gate Charge (Qg) (Max) @ Vgs
13nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
884pF @ 10V
Current - Continuous Drain (Id) @ 25°C
5.5A (Ta)
| Attribute | Value |
|---|---|
| Series | PowerTrench® |
| Packaging | Bulk |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Power - Max | 2.1W (Ta) |
| Manufacturer | Fairchild Semiconductor |
| Configuration | 2 P-Channel (Dual) Common Drain |
| Mounting Type | Surface Mount |
| Package / Case | 18-WFBGA |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Base Product Number | FDZ25 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 5.5A, 4.5V |
| Supplier Device Package | 18-BGA (2.5x4) |
| Gate Charge (Qg) (Max) @ Vgs | 13nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 884pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 5.5A (Ta) |
