Fairchild Semiconductor FDMF5826DC

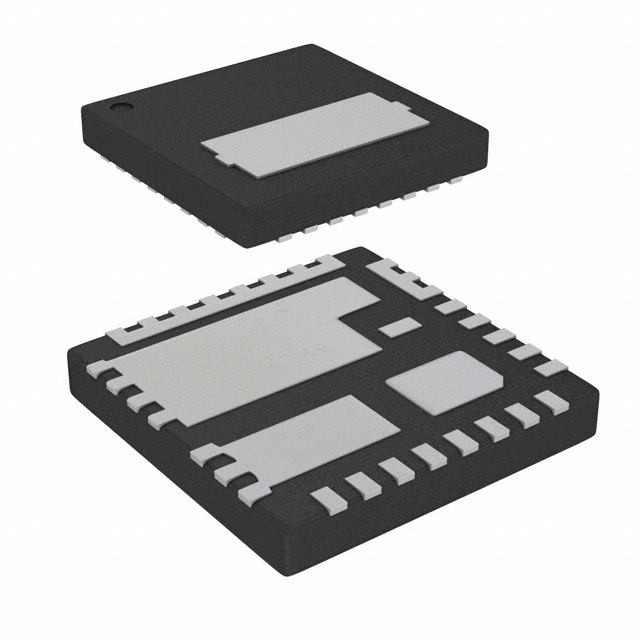

Image shown is a representation only
Manufacturer
Manufacturer No
FDMF5826DC
Package
31-PowerWFQFN
Packaging
Bulk
Description
IC HALF BRIDGE DRIVER 60A 31PQFN
Detailed Description
Half Bridge Driver Synchronous Buck Converters UMOS 31-PQFN (5x5)
DataSheet
Series
PowerTrench®, SyncFET™
Features
Bootstrap Circuit, Latch Function, Status Flag
Interface
PWM
Load Type
Inductive
Packaging
Bulk
Technology
UMOS
Part Status
Active
Applications
Synchronous Buck Converters
Manufacturer
Fairchild Semiconductor
Rds On (Typ)
470mOhm LS, 680mOhm HS
Mounting Type
Surface Mount
Package / Case
31-PowerWFQFN
Voltage - Load
4.5V ~ 16V
Fault Protection
Over Temperature, UVLO
Voltage - Supply
4.5V ~ 5.5V
Base Product Number
FDMF5826
Output Configuration
Half Bridge
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
31-PQFN (5x5)
Current - Output / Channel
60A
| Attribute | Value |
|---|---|
| Series | PowerTrench®, SyncFET™ |
| Features | Bootstrap Circuit, Latch Function, Status Flag |
| Interface | PWM |
| Load Type | Inductive |
| Packaging | Bulk |
| Technology | UMOS |
| Part Status | Active |
| Applications | Synchronous Buck Converters |
| Manufacturer | Fairchild Semiconductor |
| Rds On (Typ) | 470mOhm LS, 680mOhm HS |
| Mounting Type | Surface Mount |
| Package / Case | 31-PowerWFQFN |
| Voltage - Load | 4.5V ~ 16V |
| Fault Protection | Over Temperature, UVLO |
| Voltage - Supply | 4.5V ~ 5.5V |
| Base Product Number | FDMF5826 |
| Output Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 31-PQFN (5x5) |
| Current - Output / Channel | 60A |
