Fairchild Semiconductor FDMF3172

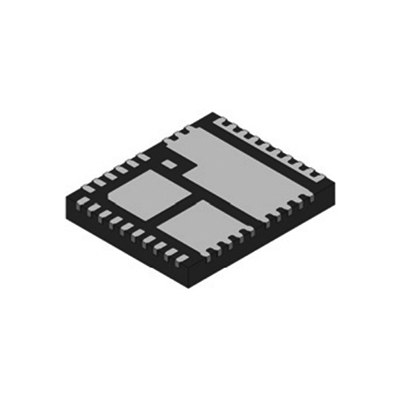

Image shown is a representation only
Manufacturer
Manufacturer No
FDMF3172
Package
39-PowerVFQFN
Packaging
Bulk
Description
IC HALF BRIDGE DRIVER 55A 39QFN
Detailed Description
Half Bridge (2) Driver General Purpose Power MOSFET 39-PQFN (5x6)
DataSheet
Features
Bootstrap Circuit
Interface
Logic, PWM
Load Type
Inductive, Capacitive
Packaging
Bulk
Technology
Power MOSFET
Part Status
Obsolete
Applications
General Purpose
Manufacturer
Fairchild Semiconductor
Mounting Type
Surface Mount
Package / Case
39-PowerVFQFN
Voltage - Load
4.5V ~ 16V
Fault Protection
Current Limiting, Over Temperature
Voltage - Supply
4.5V ~ 5.5V
Base Product Number
FDMF3172
Output Configuration
Half Bridge (2)
Current - Peak Output
70A
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
39-PQFN (5x6)
Current - Output / Channel
55A
| Attribute | Value |
|---|---|
| Features | Bootstrap Circuit |
| Interface | Logic, PWM |
| Load Type | Inductive, Capacitive |
| Packaging | Bulk |
| Technology | Power MOSFET |
| Part Status | Obsolete |
| Applications | General Purpose |
| Manufacturer | Fairchild Semiconductor |
| Mounting Type | Surface Mount |
| Package / Case | 39-PowerVFQFN |
| Voltage - Load | 4.5V ~ 16V |
| Fault Protection | Current Limiting, Over Temperature |
| Voltage - Supply | 4.5V ~ 5.5V |
| Base Product Number | FDMF3172 |
| Output Configuration | Half Bridge (2) |
| Current - Peak Output | 70A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 39-PQFN (5x6) |
| Current - Output / Channel | 55A |
