Fairchild Semiconductor FAN7093

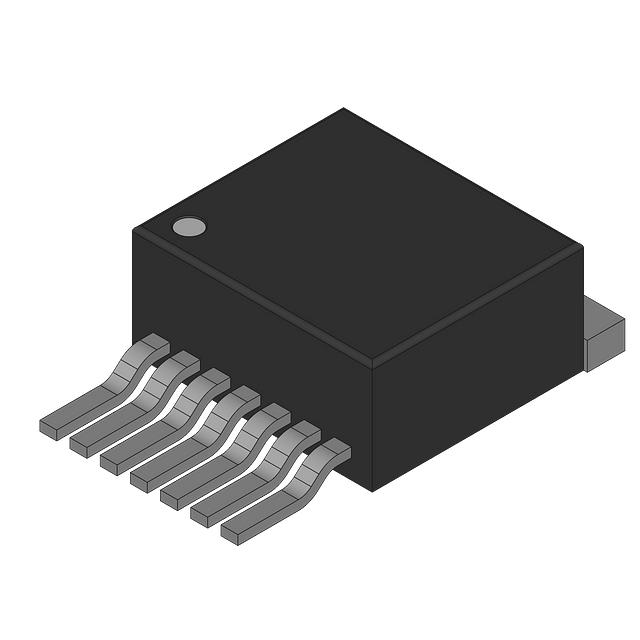

Image shown is a representation only
Manufacturer
Manufacturer No
FAN7093
Package
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Packaging
Bulk
Description
IC HALF BRIDGE DRVR 46A TO263-7
Detailed Description
Half Bridge Driver DC Motors, General Purpose DMOS TO-263-7
DataSheet
Features
Latch Function, Slew Rate Controlled, Status Flag
Interface
Logic
Load Type
Inductive
Packaging
Bulk
Technology
DMOS
Part Status
Active
Applications
DC Motors, General Purpose
Manufacturer
Fairchild Semiconductor
Rds On (Typ)
18.2mOhm LS (Max), 12.3mOhm HS (Max)
Mounting Type
Surface Mount
Package / Case
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Voltage - Load
7V ~ 18V
Fault Protection
Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Voltage - Supply
7V ~ 18V
Base Product Number
FAN7093
Output Configuration
Half Bridge
Current - Peak Output
88A
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
TO-263-7
Current - Output / Channel
46A
| Attribute | Value |
|---|---|
| Features | Latch Function, Slew Rate Controlled, Status Flag |
| Interface | Logic |
| Load Type | Inductive |
| Packaging | Bulk |
| Technology | DMOS |
| Part Status | Active |
| Applications | DC Motors, General Purpose |
| Manufacturer | Fairchild Semiconductor |
| Rds On (Typ) | 18.2mOhm LS (Max), 12.3mOhm HS (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Voltage - Load | 7V ~ 18V |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Voltage - Supply | 7V ~ 18V |
| Base Product Number | FAN7093 |
| Output Configuration | Half Bridge |
| Current - Peak Output | 88A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | TO-263-7 |
| Current - Output / Channel | 46A |
