Step1: Product
EXCELSYS / Advanced Energy CX10S-ADGBHA-P-A-DK00000

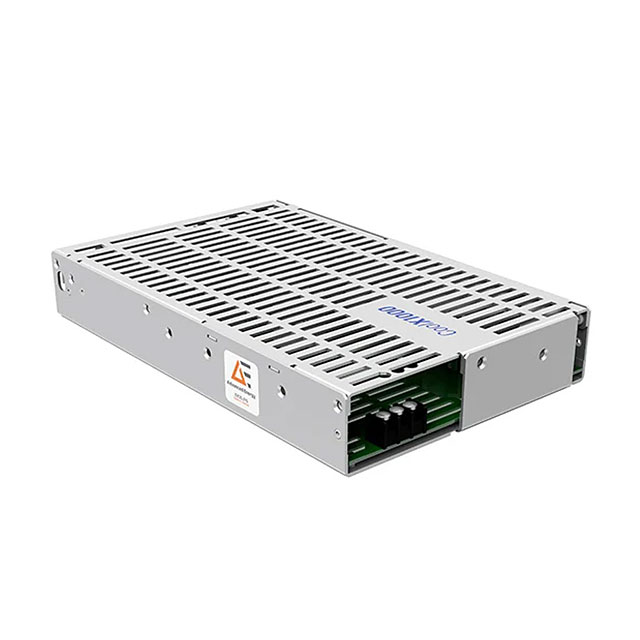

Image shown is a representation only
Manufacturer
Manufacturer No
CX10S-ADGBHA-P-A-DK00000
Packaging
Box
Description
AC/DC CNVT 2X5V 48V 2X24V 12V
Detailed Description
Enclosed AC DC Converters 8 Output 5V 48V 24V 24V 85 ~ 264 VAC Input
DataSheet
Mfr
EXCELSYS / Advanced Energy
Type
Enclosed
Series
COOLX®1000
Features
Adjustable Output, PMBus™, Remote Sense, Standby Output, Universal Input
Packaging
Box
Efficiency
93%
Part Status
Active
Applications
ITE (Commercial), Medical
Mounting Type
Chassis Mount
Power (Watts)
810W
Approval Agency
CSA, EN, IEC, UL
Standard Number
60601-1; 60950-1; 62368-1
Voltage - Input
85 ~ 264 VAC
Size / Dimension
10.22" L x 6.46" W x 1.60" H (259.5mm x 164.0mm x 40.6mm)
Number of Outputs
8
Current - Output 1
21 A
Current - Output 2
4.17 A
Current - Output 3
3 A
Current - Output 4
3 A
Current - Output 5
15 A
Current - Output 6
6 A
Voltage - Output 1
5V
Voltage - Output 2
48V
Voltage - Output 3
24V
Voltage - Output 4
24V
Voltage - Output 5
12V
Voltage - Output 6
5V
Base Product Number
CX10S
Voltage - Isolation
4 kV
Minimum Load Required
No
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Mfr | EXCELSYS / Advanced Energy |
| Type | Enclosed |
| Series | COOLX®1000 |
| Features | Adjustable Output, PMBus™, Remote Sense, Standby Output, Universal Input |
| Packaging | Box |
| Efficiency | 93% |
| Part Status | Active |
| Applications | ITE (Commercial), Medical |
| Mounting Type | Chassis Mount |
| Power (Watts) | 810W |
| Approval Agency | CSA, EN, IEC, UL |
| Standard Number | 60601-1; 60950-1; 62368-1 |
| Voltage - Input | 85 ~ 264 VAC |
| Size / Dimension | 10.22" L x 6.46" W x 1.60" H (259.5mm x 164.0mm x 40.6mm) |
| Number of Outputs | 8 |
| Current - Output 1 | 21 A |
| Current - Output 2 | 4.17 A |
| Current - Output 3 | 3 A |
| Current - Output 4 | 3 A |
| Current - Output 5 | 15 A |
| Current - Output 6 | 6 A |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 48V |
| Voltage - Output 3 | 24V |
| Voltage - Output 4 | 24V |
| Voltage - Output 5 | 12V |
| Voltage - Output 6 | 5V |
| Base Product Number | CX10S |
| Voltage - Isolation | 4 kV |
| Minimum Load Required | No |
| Operating Temperature | -40°C ~ 85°C |
