Step1: Product

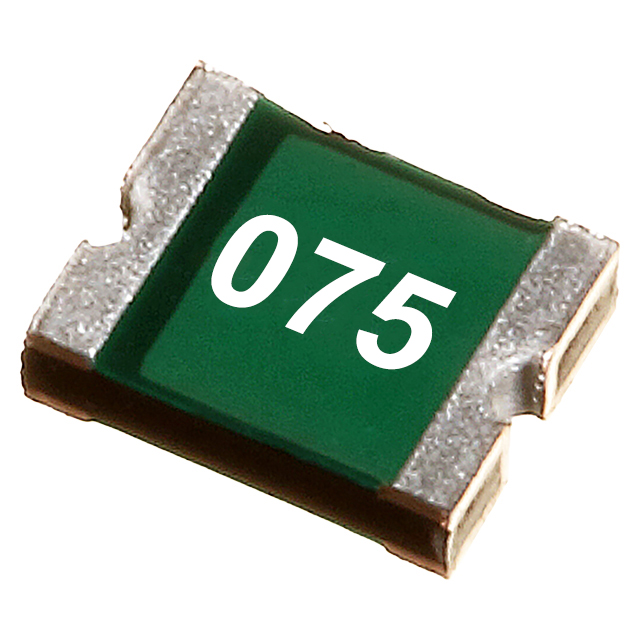

Excel Cell Electronic Co., Ltd. ERFSM075242RZ
Image shown is a representation only
Manufacturer
Manufacturer No
ERFSM075242RZ
Package
1210 (3225 Metric), Concave
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
1210/0.75AMP/24V/T&R
Detailed Description
Polymeric PTC Resettable Fuse 24V 750 mA Ih Surface Mount 1210 (3225 Metric), Concave
DataSheet
Type
Polymeric
Series
ERFSM
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Excel Cell Electronic Co., Ltd.
Time to Trip
100 ms
Current - Max
100 A
Mounting Type
Surface Mount
Voltage - Max
24V
Package / Case
1210 (3225 Metric), Concave
Approval Agency
cURus
Thickness (Max)
0.047" (1.20mm)
Size / Dimension
0.127" L x 0.101" W (3.22mm x 2.58mm)
Current - Trip (It)
1.5 A
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
750 mA
Resistance - Initial (Ri) (Min)
130 mOhms
Resistance - Post Trip (R1) (Max)
400 mOhms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | ERFSM |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Time to Trip | 100 ms |
| Current - Max | 100 A |
| Mounting Type | Surface Mount |
| Voltage - Max | 24V |
| Package / Case | 1210 (3225 Metric), Concave |
| Approval Agency | cURus |
| Thickness (Max) | 0.047" (1.20mm) |
| Size / Dimension | 0.127" L x 0.101" W (3.22mm x 2.58mm) |
| Current - Trip (It) | 1.5 A |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 750 mA |
| Resistance - Initial (Ri) (Min) | 130 mOhms |
| Resistance - Post Trip (R1) (Max) | 400 mOhms |
