Step1: Product
Excel Cell Electronic Co., Ltd. ERFSL075332RZ

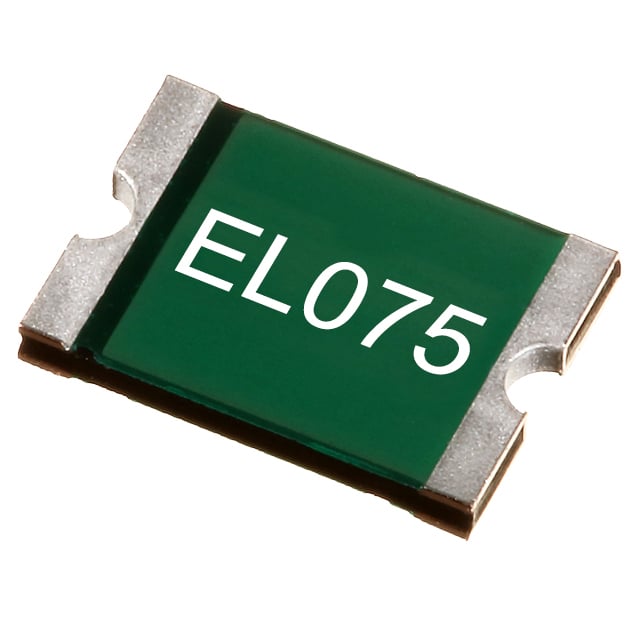

Image shown is a representation only
Manufacturer
Manufacturer No
ERFSL075332RZ
Package
2920 (7351 Metric), Concave
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
2920/0.75AMP/33V/T&R/ROHS
Detailed Description
Polymeric PTC Resettable Fuse 33V 750 mA Ih Surface Mount 2920 (7351 Metric), Concave
DataSheet
Type
Polymeric
Series
ERFSL
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Excel Cell Electronic Co., Ltd.
Time to Trip
300 ms
Current - Max
100 A
Mounting Type
Surface Mount
Voltage - Max
33V
Package / Case
2920 (7351 Metric), Concave
Approval Agency
cURus
Thickness (Max)
0.045" (1.15mm)
Size / Dimension
0.290" L x 0.202" W (7.36mm x 5.12mm)
Current - Trip (It)
1.5 A
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
750 mA
Resistance - Initial (Ri) (Min)
180 mOhms
Resistance - Post Trip (R1) (Max)
1 Ohms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | ERFSL |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Time to Trip | 300 ms |
| Current - Max | 100 A |
| Mounting Type | Surface Mount |
| Voltage - Max | 33V |
| Package / Case | 2920 (7351 Metric), Concave |
| Approval Agency | cURus |
| Thickness (Max) | 0.045" (1.15mm) |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Current - Trip (It) | 1.5 A |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 750 mA |
| Resistance - Initial (Ri) (Min) | 180 mOhms |
| Resistance - Post Trip (R1) (Max) | 1 Ohms |
