Excel Cell Electronic Co., Ltd. ERFSD075162RZ

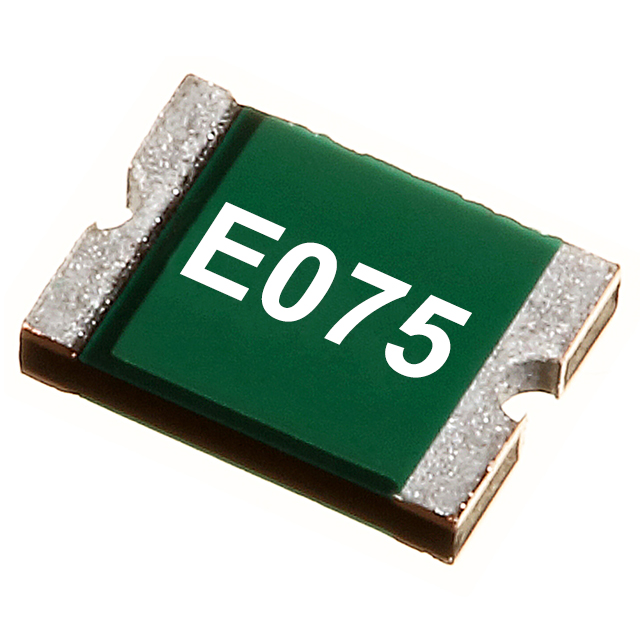

Image shown is a representation only
Manufacturer
Manufacturer No
ERFSD075162RZ
Package
1812 (4532 Metric), Concave
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
1812/0.75 AMP/16V/T&R
Detailed Description
Polymeric PTC Resettable Fuse 16V 750 mA Ih Surface Mount 1812 (4532 Metric), Concave
DataSheet
Type
Polymeric
Series
ERFSD
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Excel Cell Electronic Co., Ltd.
Time to Trip
200 ms
Current - Max
100 A
Mounting Type
Surface Mount
Voltage - Max
16V
Package / Case
1812 (4532 Metric), Concave
Approval Agency
cURus, TUV
Thickness (Max)
0.026" (0.65mm)
Size / Dimension
0.179" L x 0.128" W (4.55mm x 3.24mm)
Current - Trip (It)
1.5 A
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
750 mA
Resistance - Initial (Ri) (Min)
110 mOhms
Resistance - Post Trip (R1) (Max)
450 mOhms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | ERFSD |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Time to Trip | 200 ms |
| Current - Max | 100 A |
| Mounting Type | Surface Mount |
| Voltage - Max | 16V |
| Package / Case | 1812 (4532 Metric), Concave |
| Approval Agency | cURus, TUV |
| Thickness (Max) | 0.026" (0.65mm) |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Current - Trip (It) | 1.5 A |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 750 mA |
| Resistance - Initial (Ri) (Min) | 110 mOhms |
| Resistance - Post Trip (R1) (Max) | 450 mOhms |
