Step1: Product
EVVO TPD1E10B06DPYR-EV

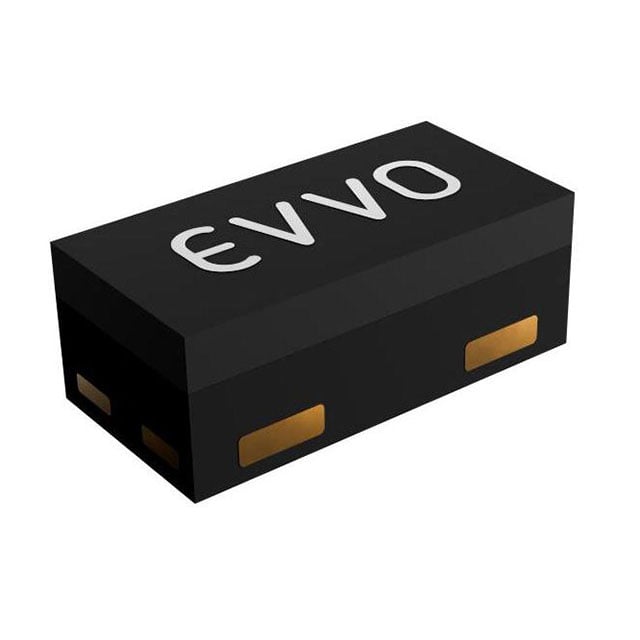

Image shown is a representation only
Manufacturer
Manufacturer No
TPD1E10B06DPYR-EV
Package
0402 (1005 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 5.5VWM 14VC 2X1SON
Detailed Description
14V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount 2-X1SON (1x0.6)
DataSheet
Mfr
EVVO
Type
Zener
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
USB
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Power - Peak Pulse
90W
Operating Temperature
-40°C ~ 125°C (TA)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
12pF @ 1MHz
Supplier Device Package
2-X1SON (1x0.6)
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @ Ipp
14V
Voltage - Reverse Standoff (Typ)
5.5V (Max)
Current - Peak Pulse (10/1000µs)
6A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | EVVO |
| Type | Zener |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | USB |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Power - Peak Pulse | 90W |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 12pF @ 1MHz |
| Supplier Device Package | 2-X1SON (1x0.6) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 14V |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) |
