Everlight Electronics Co Ltd EL2630

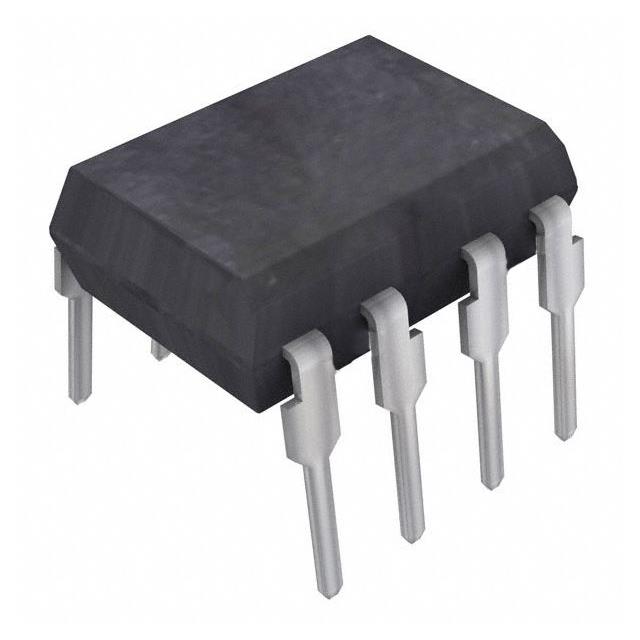

Image shown is a representation only
Manufacturer
Manufacturer No
EL2630
Quantity
19975
Availability
In Stock
Package
8-DIP (0.300", 7.62mm)
Packaging
Tube
Description
OPTOISO 5KV 2CH OPEN COLL 8-DIP
Detailed Description
Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 2 Channel 5kV/µs CMTI 8-DIP
DataSheet
Data Rate
10Mbps
Packaging
Tube
Input Type
DC
Output Type
Open Collector
Part Status
Active
Manufacturer
Everlight Electronics Co Ltd
Mounting Type
Through Hole
Package / Case
8-DIP (0.300", 7.62mm)
Voltage - Supply
7V
Number of Channels
2
Voltage - Isolation
5000Vrms
Operating Temperature
-40°C ~ 100°C
Inputs - Side 1/Side 2
2/0
Rise / Fall Time (Typ)
40ns, 10ns
Supplier Device Package
8-DIP
Current - Output / Channel
50 mA
Voltage - Forward (Vf) (Typ)
1.4V
Current - DC Forward (If) (Max)
20mA
Propagation Delay tpLH / tpHL (Max)
100ns, 100ns
Common Mode Transient Immunity (Min)
5kV/µs
| Attribute | Value |
|---|---|
| Data Rate | 10Mbps |
| Packaging | Tube |
| Input Type | DC |
| Output Type | Open Collector |
| Part Status | Active |
| Manufacturer | Everlight Electronics Co Ltd |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Voltage - Supply | 7V |
| Number of Channels | 2 |
| Voltage - Isolation | 5000Vrms |
| Operating Temperature | -40°C ~ 100°C |
| Inputs - Side 1/Side 2 | 2/0 |
| Rise / Fall Time (Typ) | 40ns, 10ns |
| Supplier Device Package | 8-DIP |
| Current - Output / Channel | 50 mA |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 20mA |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Common Mode Transient Immunity (Min) | 5kV/µs |
