Everlight Electronics Co Ltd EL1019(TA)-VG

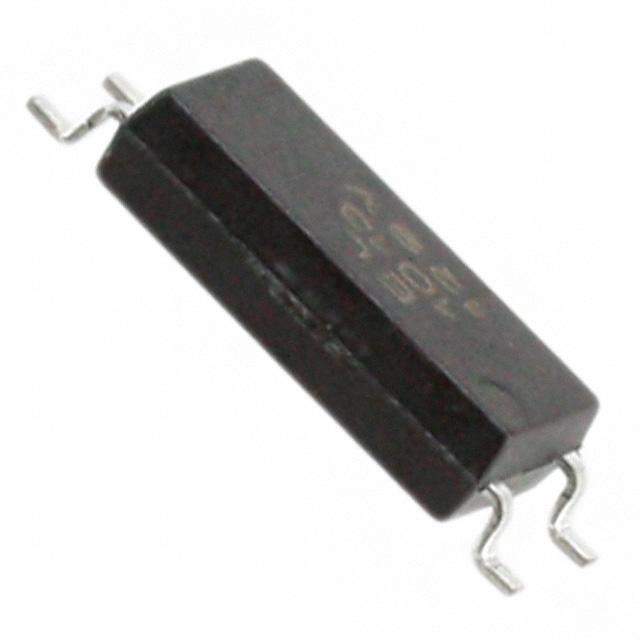

Image shown is a representation only
Manufacturer
Manufacturer No
EL1019(TA)-VG
Quantity
346430
Availability
In Stock
Package
4-SMD, Gull Wing
Packaging
Tape & Reel (TR)
Description
OPTOISOLATOR 5KV 1CH TRANS 4-SOP
Detailed Description
Optoisolator Transistor Output 5000Vrms 1 Channel 4-SOP (2.54mm)
DataSheet
Packaging
Tape & Reel (TR)
Input Type
DC
Output Type
Transistor
Part Status
Active
Manufacturer
Everlight Electronics Co Ltd
Mounting Type
Surface Mount
Package / Case
4-SMD, Gull Wing
Number of Channels
1
Base Product Number
EL1019
Voltage - Isolation
5000Vrms
Vce Saturation (Max)
300mV
Operating Temperature
-55°C ~ 110°C
Rise / Fall Time (Typ)
2µs, 3µs
Voltage - Output (Max)
80V
Supplier Device Package
4-SOP (2.54mm)
Current - Output / Channel
50mA
Current Transfer Ratio (Max)
400% @ 5mA
Current Transfer Ratio (Min)
200% @ 5mA
Voltage - Forward (Vf) (Typ)
1.45V
Turn On / Turn Off Time (Typ)
4µs, 3µs
Current - DC Forward (If) (Max)
60 mA
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR) |
| Input Type | DC |
| Output Type | Transistor |
| Part Status | Active |
| Manufacturer | Everlight Electronics Co Ltd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Number of Channels | 1 |
| Base Product Number | EL1019 |
| Voltage - Isolation | 5000Vrms |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 110°C |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Voltage - Output (Max) | 80V |
| Supplier Device Package | 4-SOP (2.54mm) |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 400% @ 5mA |
| Current Transfer Ratio (Min) | 200% @ 5mA |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Turn On / Turn Off Time (Typ) | 4µs, 3µs |
| Current - DC Forward (If) (Max) | 60 mA |
