Step1: Product

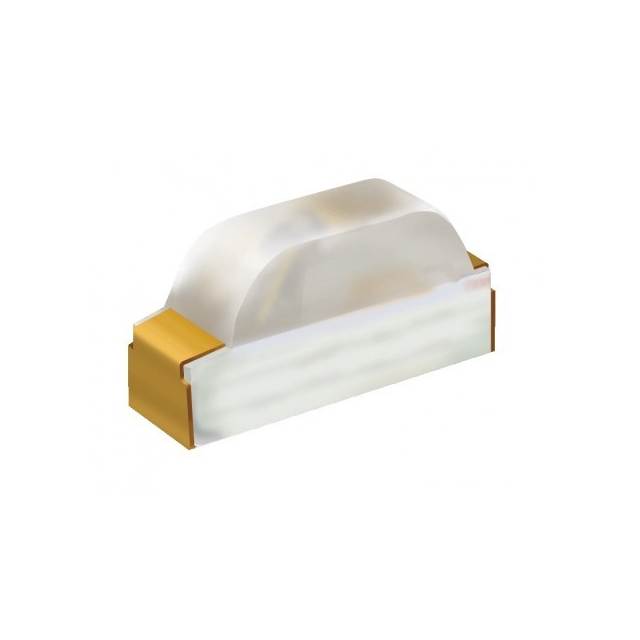

Everlight Electronics Co Ltd EASV3015ICRGBA0
Image shown is a representation only
Manufacturer
Manufacturer No
EASV3015ICRGBA0
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED RGB DIFFUSED SMD
Detailed Description
Red, Green, Blue (RGB) 624nm Red, 533nm Green, 470nm Blue LED Indication - Discrete 5V Red, 5V Green, 5V Blue
DataSheet
Mfr
Everlight Electronics Co Ltd
Color
Red, Green, Blue (RGB)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
White
Lens Style
Rectangle with Domed Top
Part Status
Active
Height (Max)
1.60mm
Mounting Type
Surface Mount
Viewing Angle
130°
Current - Test
5mA Red, 5mA Green, 5mA Blue
Size / Dimension
3.00mm L x 1.00mm W
Lens Transparency
Diffused
Wavelength - Peak
632nm Red, 518nm Green, 468nm Blue
Base Product Number
EASV3015
Millicandela Rating
47mcd Red, 92mcd Green, 37mcd Blue
Wavelength - Dominant
624nm Red, 533nm Green, 470nm Blue
Supplier Device Package
SMD
Voltage - Forward (Vf) (Typ)
5V Red, 5V Green, 5V Blue
| Attribute | Value |
|---|---|
| Mfr | Everlight Electronics Co Ltd |
| Color | Red, Green, Blue (RGB) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | White |
| Lens Style | Rectangle with Domed Top |
| Part Status | Active |
| Height (Max) | 1.60mm |
| Mounting Type | Surface Mount |
| Viewing Angle | 130° |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Size / Dimension | 3.00mm L x 1.00mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 632nm Red, 518nm Green, 468nm Blue |
| Base Product Number | EASV3015 |
| Millicandela Rating | 47mcd Red, 92mcd Green, 37mcd Blue |
| Wavelength - Dominant | 624nm Red, 533nm Green, 470nm Blue |
| Supplier Device Package | SMD |
| Voltage - Forward (Vf) (Typ) | 5V Red, 5V Green, 5V Blue |
