Step1: Product

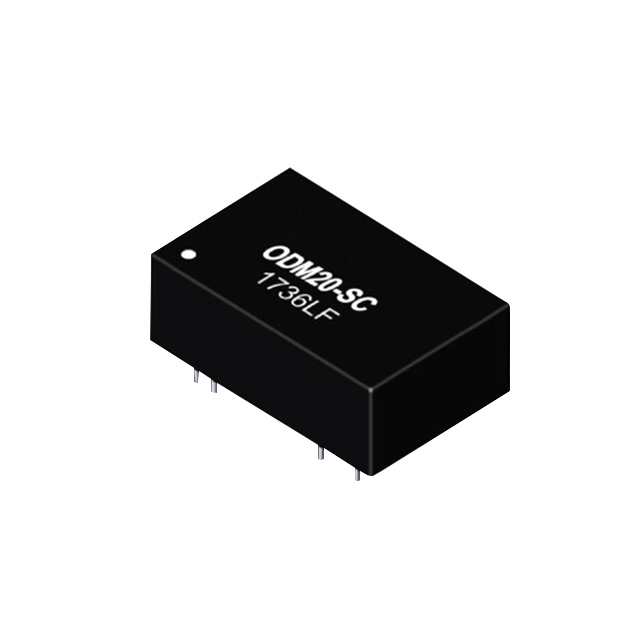

ETA-USA ODM20-05SC12
Image shown is a representation only
Manufacturer
Manufacturer No
ODM20-05SC12
Package
5-DIP Module
Packaging
Bulk
Description
DC DC CONVERTER 5V 20W
Detailed Description
Isolated Module DC DC Converter 1 Output 5V 4A 9V - 18V Input
DataSheet
Mfr
ETA-USA
Type
Isolated Module
Series
ODM20-SC (20W)
Packaging
Bulk
Efficiency
86%
Part Status
Active
Applications
Medical
Mounting Type
Through Hole
Power (Watts)
20 W
Package / Case
5-DIP Module
Size / Dimension
2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm)
Number of Outputs
1
Voltage - Output 1
5V
Base Product Number
ODM20
Voltage - Isolation
5 kV
Operating Temperature
-40°C ~ 100°C
Voltage - Input (Max)
18V
Voltage - Input (Min)
9V
Current - Output (Max)
4A
| Attribute | Value |
|---|---|
| Mfr | ETA-USA |
| Type | Isolated Module |
| Series | ODM20-SC (20W) |
| Packaging | Bulk |
| Efficiency | 86% |
| Part Status | Active |
| Applications | Medical |
| Mounting Type | Through Hole |
| Power (Watts) | 20 W |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 5V |
| Base Product Number | ODM20 |
| Voltage - Isolation | 5 kV |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Input (Max) | 18V |
| Voltage - Input (Min) | 9V |
| Current - Output (Max) | 4A |
