Step1: Product

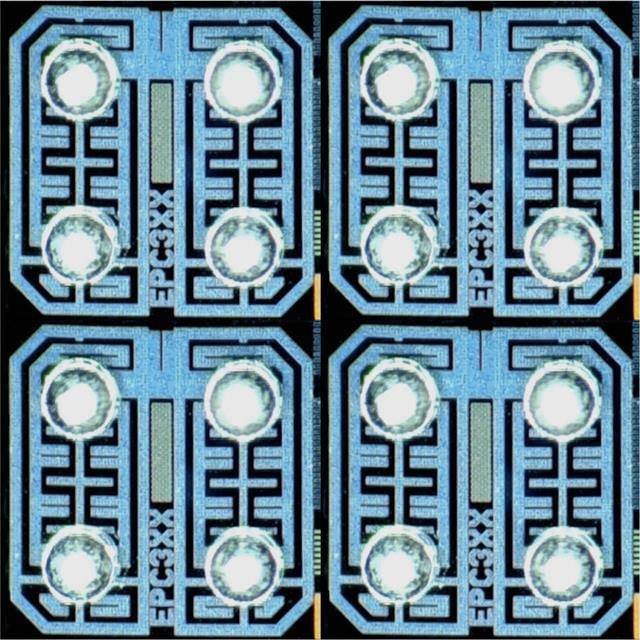

ESPROS Photonics AG EPC320-CSP16-001
Image shown is a representation only
Manufacturer
Manufacturer No
EPC320-CSP16-001
Package
16-XFBGA, CSPBGA
Packaging
Tape & Reel (TR)
Description
SENSOR PHOTODIODE 850NM 16XFBGA
Detailed Description
Photodiode 850nm 300ns 150° 16-XFBGA, CSPBGA
DataSheet
Packaging
Tape & Reel (TR)
Wavelength
850nm
Active Area
3.42mm²
Part Status
Obsolete
Manufacturer
ESPROS Photonics AG
Mounting Type
Surface Mount
Response Time
300ns
Viewing Angle
150°
Package / Case
16-XFBGA, CSPBGA
Spectral Range
400nm ~ 1030nm
Color - Enhanced
Infrared (NIR)/Red
Responsivity @ nm
0.6 A/W @ 850nm
Base Product Number
EPC320
Current - Dark (Typ)
320pA
Operating Temperature
-40°C ~ 85°C
Voltage - DC Reverse (Vr) (Max)
20 V
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR) |
| Wavelength | 850nm |
| Active Area | 3.42mm² |
| Part Status | Obsolete |
| Manufacturer | ESPROS Photonics AG |
| Mounting Type | Surface Mount |
| Response Time | 300ns |
| Viewing Angle | 150° |
| Package / Case | 16-XFBGA, CSPBGA |
| Spectral Range | 400nm ~ 1030nm |
| Color - Enhanced | Infrared (NIR)/Red |
| Responsivity @ nm | 0.6 A/W @ 850nm |
| Base Product Number | EPC320 |
| Current - Dark (Typ) | 320pA |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
