Step1: Product

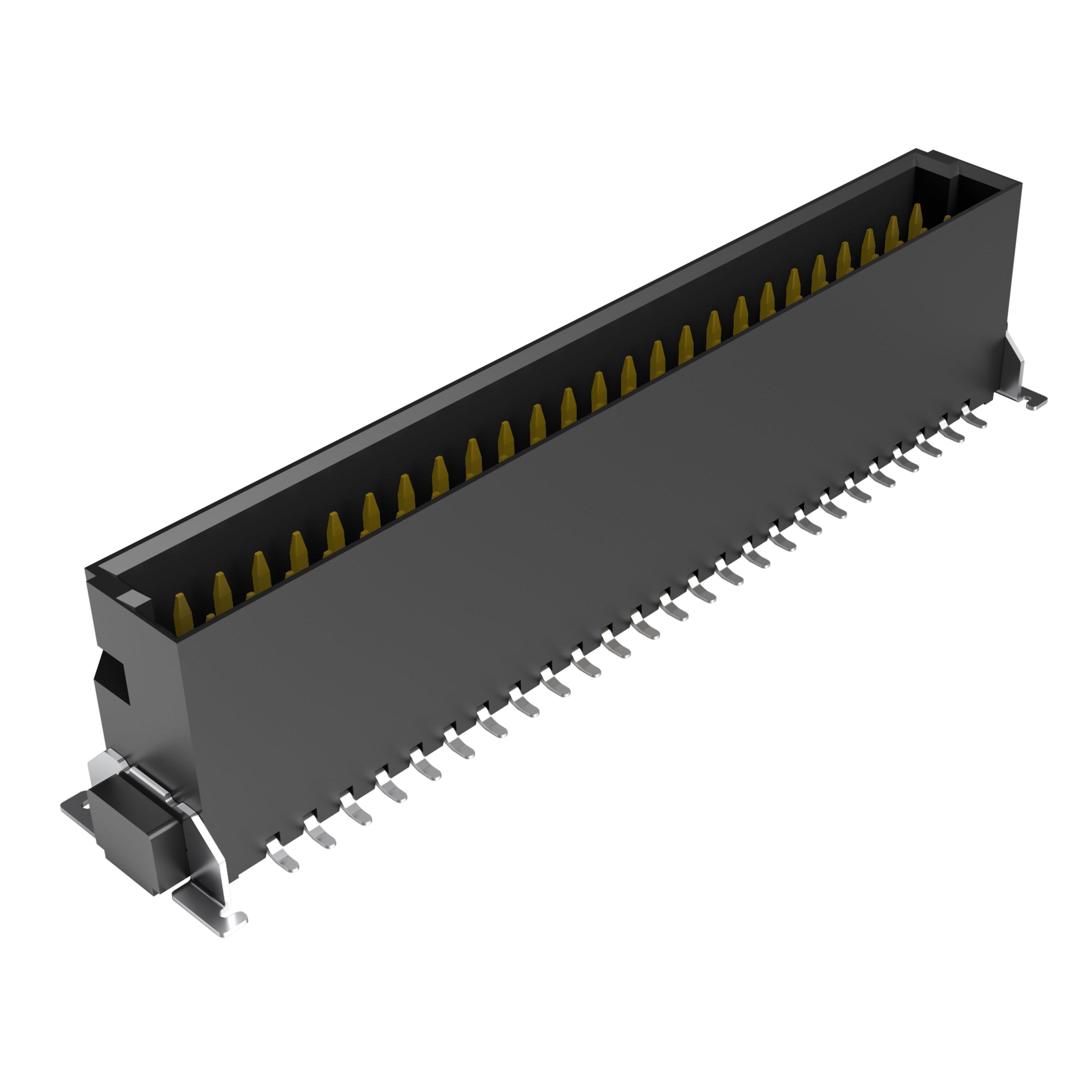

ept, inc 403-53050-51
Image shown is a representation only
Manufacturer
Manufacturer No
403-53050-51
Packaging
Tape & Reel (TR)
Description
1.27MM MALE STRAIGHT 3.25MM 50P
Detailed Description
Connector Header Surface Mount 50 position 0.050" (1.27mm)
DataSheet
Mfr
ept, inc
Style
Board to Board or Cable
Series
403
Features
Board Guide, Solder Retention
Packaging
Tape & Reel (TR)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.325" (8.25mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
50
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Gold
Current Rating (Amps)
1.4A
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
9.5mm ~ 13.8mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | ept, inc |
| Style | Board to Board or Cable |
| Series | 403 |
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.325" (8.25mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 50 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1.4A |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | 9.5mm ~ 13.8mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
