Step1: Product

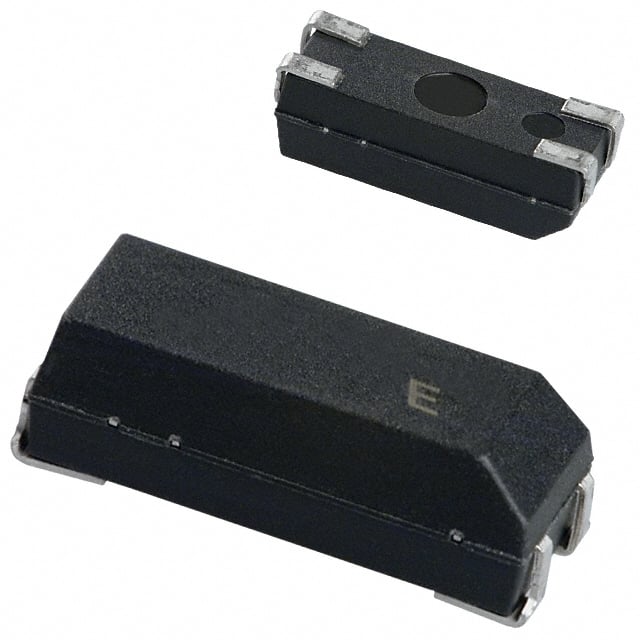

EPSON MA-506 6.0000M-C0
Image shown is a representation only
Manufacturer
Manufacturer No
MA-506 6.0000M-C0
Date Code
06+
Quantity
72
Availability
In Stock
Package
4-SOJ, 3.30mm pitch
Packaging
Tape & Reel (TR)
Description
CRYSTAL 6.0000MHZ 18PF SMD
Detailed Description
6 MHz ±50ppm Crystal 18pF 80 Ohms 4-SOJ, 3.30mm pitch
Datasheet
Mfr
EPSON
Type
MHz Crystal
Series
MA-506
Frequency
6 MHz
Packaging
Tape & Reel (TR)
Mounting Type
Surface Mount
Operating Mode
Fundamental
Package / Case
4-SOJ, 3.30mm pitch
Load Capacitance
18pF
Size / Dimension
0.500" L x 0.200" W (12.70mm x 5.08mm)
Frequency Stability
±30ppm
Frequency Tolerance
±50ppm
Height - Seated (Max)
0.181" (4.60mm)
Operating Temperature
-20°C ~ 70°C
Supplier Device Package
4-SOJ
ESR (Equivalent Series Resistance)
80 Ohms
| Attribute | Value |
|---|---|
| Mfr | EPSON |
| Type | MHz Crystal |
| Series | MA-506 |
| Frequency | 6 MHz |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Package / Case | 4-SOJ, 3.30mm pitch |
| Load Capacitance | 18pF |
| Size / Dimension | 0.500" L x 0.200" W (12.70mm x 5.08mm) |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±50ppm |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Operating Temperature | -20°C ~ 70°C |
| Supplier Device Package | 4-SOJ |
| ESR (Equivalent Series Resistance) | 80 Ohms |
