Step1: Product
EPC UP1966E

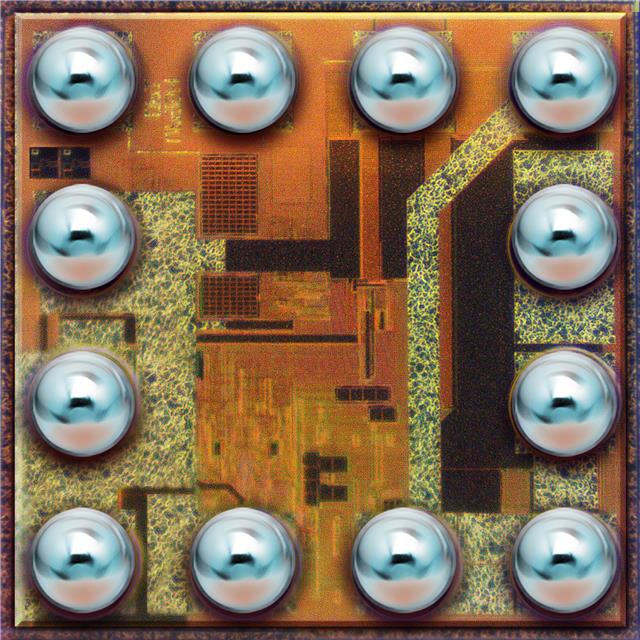

Image shown is a representation only
Manufacturer
Manufacturer No
UP1966E
Package
12-UFBGA, WLCSP
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC GATE DRVR HALF-BRIDGE 12WLCSP
Detailed Description
Half-Bridge Gate Driver IC Non-Inverting 12-WLCSP-B (1.6x1.6)
DataSheet
Gate Type
GaN FET
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Non-Inverting
Part Status
Active
Channel Type
Independent
Manufacturer
EPC
Mounting Type
Surface Mount
Package / Case
12-UFBGA, WLCSP
Voltage - Supply
4.5V ~ 5.5V
Number of Drivers
2
Base Product Number
UP1966
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 125°C (TJ)
Rise / Fall Time (Typ)
8ns, 4ns
Supplier Device Package
12-WLCSP-B (1.6x1.6)
Logic Voltage - VIL, VIH
0.5V, 2.3V
High Side Voltage - Max (Bootstrap)
85 V
Current - Peak Output (Source, Sink)
7.1A, 12.5A
| Attribute | Value |
|---|---|
| Gate Type | GaN FET |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Non-Inverting |
| Part Status | Active |
| Channel Type | Independent |
| Manufacturer | EPC |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFBGA, WLCSP |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Drivers | 2 |
| Base Product Number | UP1966 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Rise / Fall Time (Typ) | 8ns, 4ns |
| Supplier Device Package | 12-WLCSP-B (1.6x1.6) |
| Logic Voltage - VIL, VIH | 0.5V, 2.3V |
| High Side Voltage - Max (Bootstrap) | 85 V |
| Current - Peak Output (Source, Sink) | 7.1A, 12.5A |
