EPC EPC2234

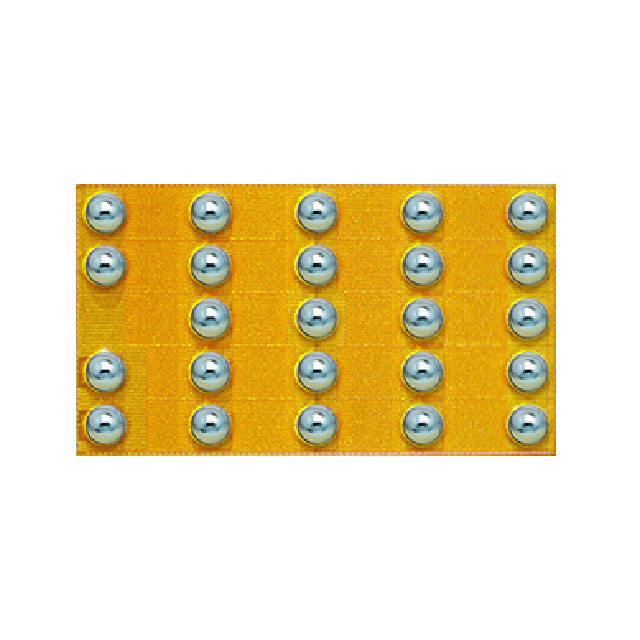

Image shown is a representation only
Manufacturer
Manufacturer No
EPC2234
Package
24-VFBGA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TRANS GAN AEC 160V .008OHM 24BGA
Detailed Description
N-Channel 160 V 48A (Ta) Surface Mount 24-BGA (4.6x2.6)
DataSheet
Mfr
EPC
Grade
Automotive
Series
eGaN®
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
+5.5V, -4V
Technology
GaNFET (Gallium Nitride)
Part Status
Active
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
24-VFBGA
Vgs(th) (Max) @ Id
2.5V @ 7mA
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
8mOhm @ 20A, 5V
Supplier Device Package
24-BGA (4.6x2.6)
Gate Charge (Qg) (Max) @ Vgs
13.8 nC @ 5 V
Drain to Source Voltage (Vdss)
160 V
Input Capacitance (Ciss) (Max) @ Vds
1386 pF @ 100 V
Drive Voltage (Max Rds On, Min Rds On)
5V
Current - Continuous Drain (Id) @ 25°C
48A (Ta)
| Attribute | Value |
|---|---|
| Mfr | EPC |
| Grade | Automotive |
| Series | eGaN® |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | +5.5V, -4V |
| Technology | GaNFET (Gallium Nitride) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 24-VFBGA |
| Vgs(th) (Max) @ Id | 2.5V @ 7mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 20A, 5V |
| Supplier Device Package | 24-BGA (4.6x2.6) |
| Gate Charge (Qg) (Max) @ Vgs | 13.8 nC @ 5 V |
| Drain to Source Voltage (Vdss) | 160 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1386 pF @ 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Current - Continuous Drain (Id) @ 25°C | 48A (Ta) |
