Step1: Product
EPC EPC2070

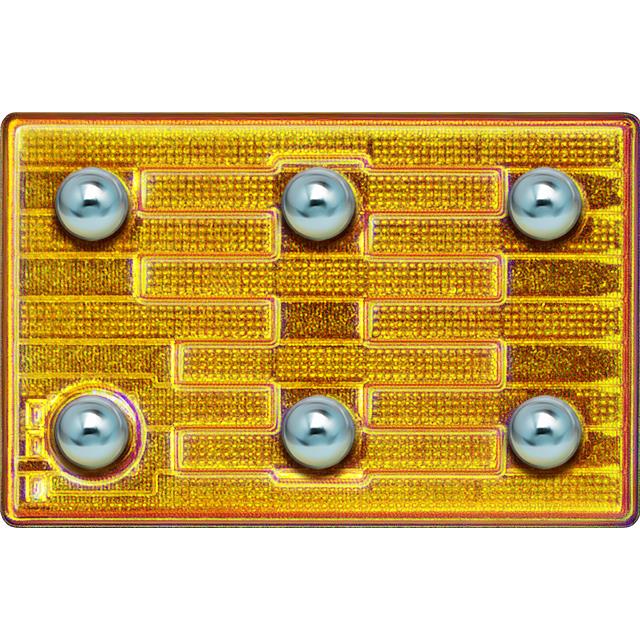

Image shown is a representation only
Manufacturer
Manufacturer No
EPC2070
Package
Die
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TRANS GAN DIE 100V .022OHM
Detailed Description
N-Channel 100 V 1.7A (Ta) Surface Mount Die
DataSheet
Mfr
EPC
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
+6V, -4V
Technology
GaNFET (Gallium Nitride)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Die
Vgs(th) (Max) @ Id
2.5V @ 1.5mA
Base Product Number
EPC20
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
23mOhm @ 3A, 5V
Supplier Device Package
Die
Gate Charge (Qg) (Max) @ Vgs
2.5 nC @ 5 V
Drain to Source Voltage (Vdss)
100 V
Input Capacitance (Ciss) (Max) @ Vds
386 pF @ 50 V
Drive Voltage (Max Rds On, Min Rds On)
5V
Current - Continuous Drain (Id) @ 25°C
1.7A (Ta)
| Attribute | Value |
|---|---|
| Mfr | EPC |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | +6V, -4V |
| Technology | GaNFET (Gallium Nitride) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Die |
| Vgs(th) (Max) @ Id | 2.5V @ 1.5mA |
| Base Product Number | EPC20 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 3A, 5V |
| Supplier Device Package | Die |
| Gate Charge (Qg) (Max) @ Vgs | 2.5 nC @ 5 V |
| Drain to Source Voltage (Vdss) | 100 V |
| Input Capacitance (Ciss) (Max) @ Vds | 386 pF @ 50 V |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Current - Continuous Drain (Id) @ 25°C | 1.7A (Ta) |
