Step1: Product

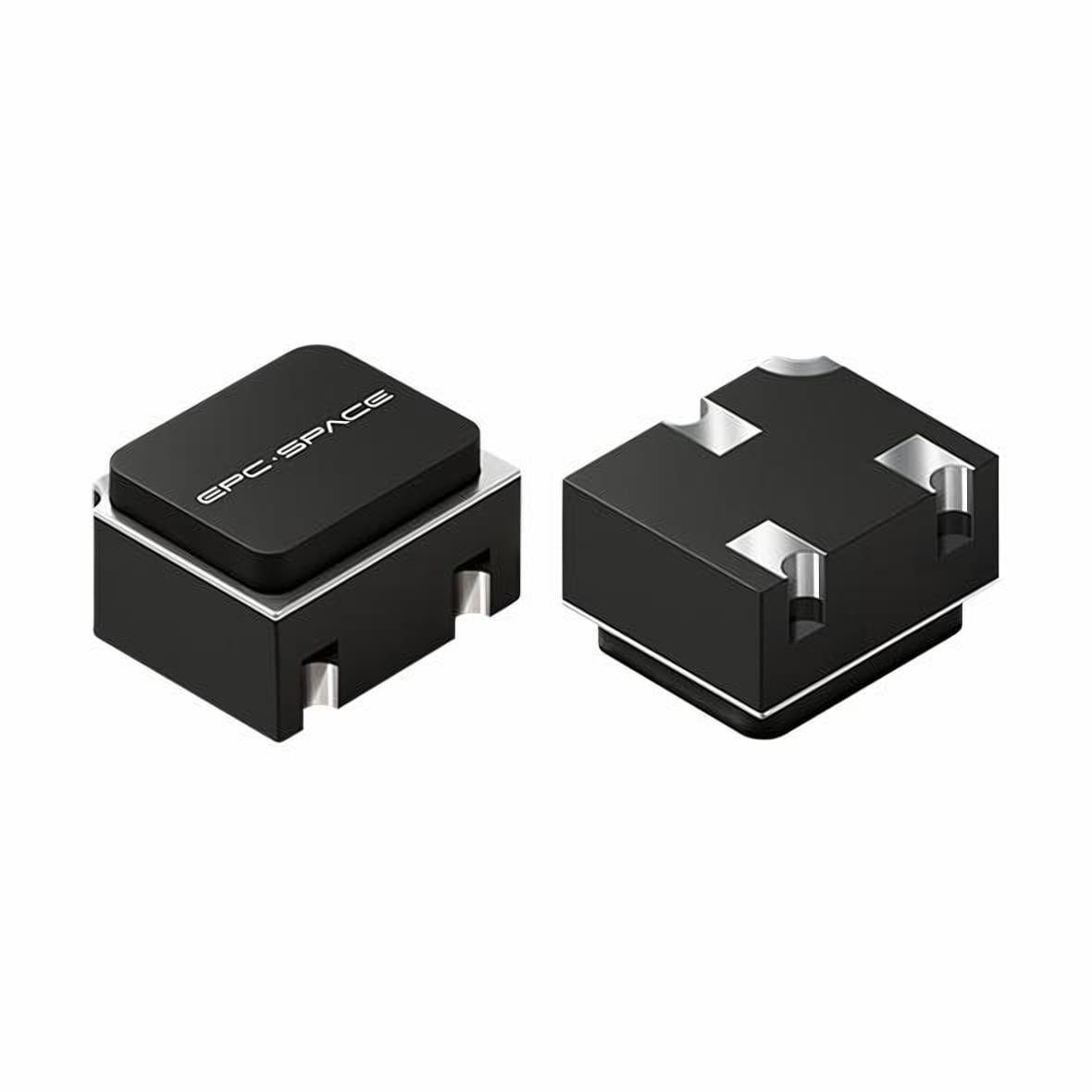

EPC Space, LLC EPC7014UBC
Image shown is a representation only
Manufacturer
Manufacturer No
EPC7014UBC
Package
4-SMD, No Lead
Packaging
Bulk
Description
GAN FET HEMT 60V 1A COTS 4UB
Detailed Description
N-Channel 60 V 1A (Tc) Surface Mount 4-SMD
DataSheet
Mfr
EPC Space, LLC
Series
e-GaN®
FET Type
N-Channel
Packaging
Bulk
Vgs (Max)
+7V, -4V
Technology
GaNFET (Gallium Nitride)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
4-SMD, No Lead
Vgs(th) (Max) @ Id
2.5V @ 140µA
Base Product Number
EPC7014
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
580mOhm @ 1A, 5V
Supplier Device Package
4-SMD
Drain to Source Voltage (Vdss)
60 V
Input Capacitance (Ciss) (Max) @ Vds
22 pF @ 30 V
Drive Voltage (Max Rds On, Min Rds On)
5V
Current - Continuous Drain (Id) @ 25°C
1A (Tc)
| Attribute | Value |
|---|---|
| Mfr | EPC Space, LLC |
| Series | e-GaN® |
| FET Type | N-Channel |
| Packaging | Bulk |
| Vgs (Max) | +7V, -4V |
| Technology | GaNFET (Gallium Nitride) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Vgs(th) (Max) @ Id | 2.5V @ 140µA |
| Base Product Number | EPC7014 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 580mOhm @ 1A, 5V |
| Supplier Device Package | 4-SMD |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 22 pF @ 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Current - Continuous Drain (Id) @ 25°C | 1A (Tc) |
