Step1: Product

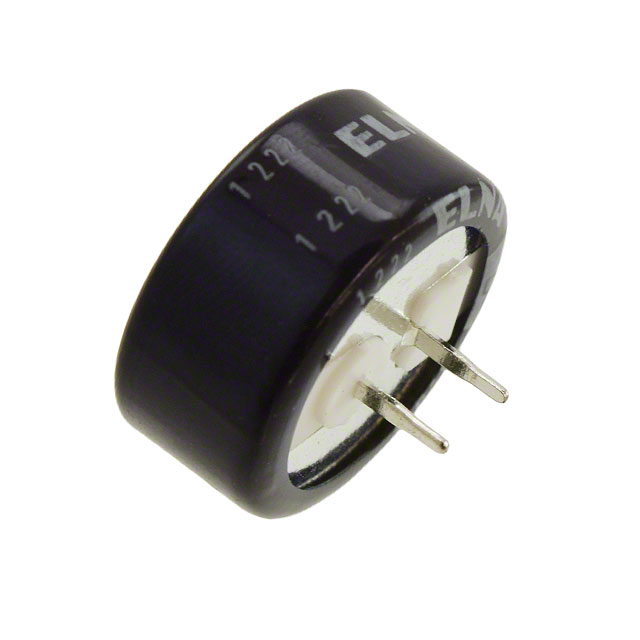

Elna America RSCHL1055R5L09015T
Image shown is a representation only
Manufacturer
Manufacturer No
RSCHL1055R5L09015T
Package
Radial, Can
Packaging
Bulk
Description
CAP 1F -20% +80% 5.5V T/H
Detailed Description
1 F (EDLC) Supercapacitor 5.5 V Radial, Can 20Ohm 1000 Hrs @ 85°C
DataSheet
Series
DHL
Packaging
Bulk
Tolerance
-20%, +80%
Capacitance
1 F
Part Status
Obsolete
Termination
PC Pins
Lead Spacing
0.197" (5.00mm)
Manufacturer
Elna America
Mounting Type
Through Hole
Package / Case
Radial, Can
Voltage - Rated
5.5 V
Lifetime @ Temp.
1000 Hrs @ 85°C
Size / Dimension
0.846" Dia (21.50mm)
Height - Seated (Max)
0.374" (9.50mm)
Operating Temperature
-40°C ~ 85°C
ESR (Equivalent Series Resistance)
20Ohm
| Attribute | Value |
|---|---|
| Series | DHL |
| Packaging | Bulk |
| Tolerance | -20%, +80% |
| Capacitance | 1 F |
| Part Status | Obsolete |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Manufacturer | Elna America |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 5.5 V |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Size / Dimension | 0.846" Dia (21.50mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| ESR (Equivalent Series Resistance) | 20Ohm |
