Step1: Product

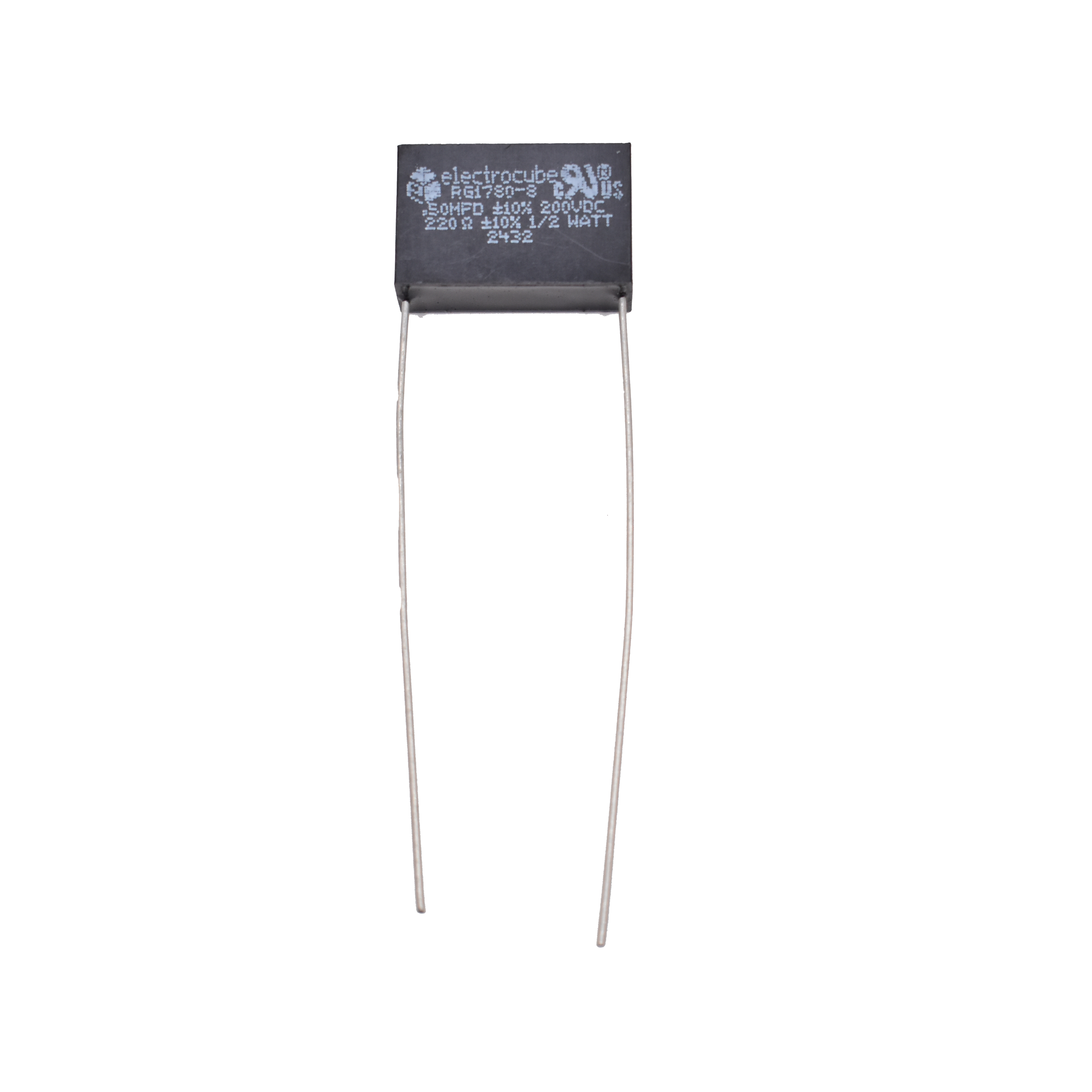

Electrocube RG1780-8
Image shown is a representation only
Manufacturer
Manufacturer No
RG1780-8
Package
Radial
Packaging
Bulk
Description
FILTER RC 220OHM/0.5UF TH
Detailed Description
RC EMI Filter 1st Order Low Pass 1 Channel R = 220Ohm, C = 0.5µF Radial
DataSheet
Type
Low Pass
Height
0.660" (16.76mm)
Values
R = 220Ohm, C = 0.5µF
Packaging
Bulk
Technology
RC
Part Status
Active
Applications
General Purpose
Filter Order
1st
Manufacturer
Electrocube
Mounting Type
Through Hole
ESD Protection
No
Package / Case
Radial
Voltage - Rated
200V
Size / Dimension
1.000" L x 0.380" W (25.40mm x 9.65mm)
Number of Channels
1
Operating Temperature
-40°C ~ 80°C
Resistance - Channel (Ohms)
220
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Height | 0.660" (16.76mm) |
| Values | R = 220Ohm, C = 0.5µF |
| Packaging | Bulk |
| Technology | RC |
| Part Status | Active |
| Applications | General Purpose |
| Filter Order | 1st |
| Manufacturer | Electrocube |
| Mounting Type | Through Hole |
| ESD Protection | No |
| Package / Case | Radial |
| Voltage - Rated | 200V |
| Size / Dimension | 1.000" L x 0.380" W (25.40mm x 9.65mm) |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 80°C |
| Resistance - Channel (Ohms) | 220 |
