Step1: Product

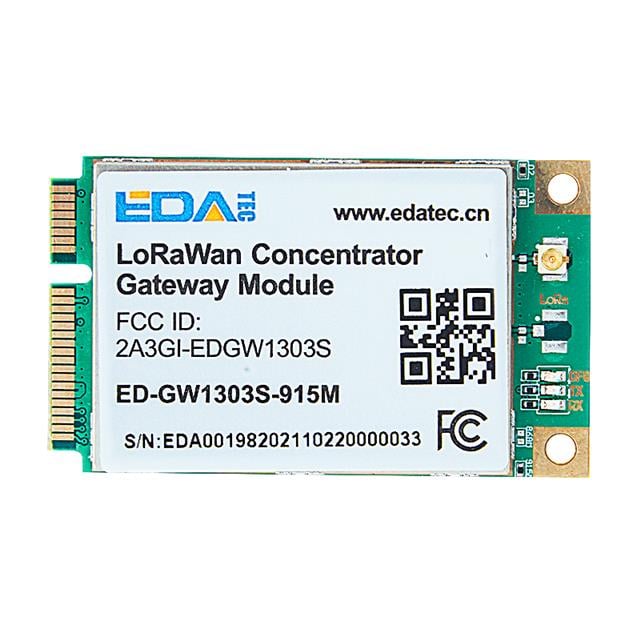

EDATEC ED-GW1303S-915M
Image shown is a representation only
Manufacturer
Manufacturer No
ED-GW1303S-915M
Package
Module
Packaging
Box
Description
RF TXRX MOD NAVIGATIONMINI PCIE
Detailed Description
Navigation LoRa Transceiver Module 902MHz ~ 928MHz Antenna Not Included mini PCIe
DataSheet
Mfr
EDATEC
Series
ED-GW1303
Protocol
LoRa
Frequency
902MHz ~ 928MHz
Packaging
Box
Modulation
LoRa
Part Status
Active
Sensitivity
-141dBi
Antenna Type
Antenna Not Included
Mounting Type
mini PCIe
Package / Case
Module
Power - Output
25dBm
Voltage - Supply
3V ~ 3.6V
Serial Interfaces
SPI
RF Family/Standard
Navigation
Utilized IC / Part
SX1303
Current - Receiving
54mA
DigiKey Programmable
Not Verified
Operating Temperature
0°C ~ 60°C
Current - Transmitting
306mA
| Attribute | Value |
|---|---|
| Mfr | EDATEC |
| Series | ED-GW1303 |
| Protocol | LoRa |
| Frequency | 902MHz ~ 928MHz |
| Packaging | Box |
| Modulation | LoRa |
| Part Status | Active |
| Sensitivity | -141dBi |
| Antenna Type | Antenna Not Included |
| Mounting Type | mini PCIe |
| Package / Case | Module |
| Power - Output | 25dBm |
| Voltage - Supply | 3V ~ 3.6V |
| Serial Interfaces | SPI |
| RF Family/Standard | Navigation |
| Utilized IC / Part | SX1303 |
| Current - Receiving | 54mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | 0°C ~ 60°C |
| Current - Transmitting | 306mA |
