Step1: Product
EDAC Inc. 745-052-520-101

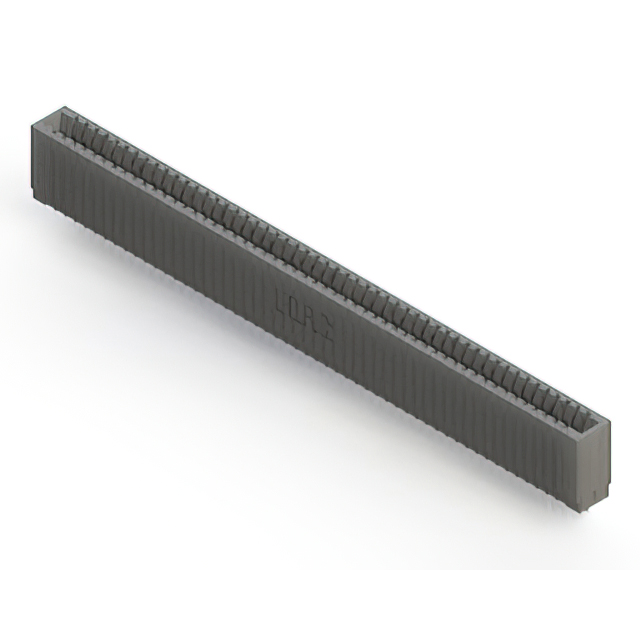

Image shown is a representation only
Manufacturer
Manufacturer No
745-052-520-101
Packaging
Bulk
Description
CONN EDGE SINGLE FML 52POS 0.100
Detailed Description
52 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
Datasheet
Color
Black
Pitch
0.100" (2.54mm)
Gender
Female
Series
745
Read Out
Single
Card Type
Non Specified - Single Edge
Packaging
Bulk
Termination
Press-Fit
Contact Type
Cantilever
Manufacturer
EDAC Inc.
Mounting Type
Through Hole
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Finish
Gold
Number of Rows
1
Contact Material
Copper Alloy
Termination Rows
1
Base Product Number
745-052
Number of Positions
52
Material - Insulation
Polyester Thermoplastic
Operating Temperature
-40°C ~ 105°C
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions/Bay/Row
52
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.100" (2.54mm) |
| Gender | Female |
| Series | 745 |
| Read Out | Single |
| Card Type | Non Specified - Single Edge |
| Packaging | Bulk |
| Termination | Press-Fit |
| Contact Type | Cantilever |
| Manufacturer | EDAC Inc. |
| Mounting Type | Through Hole |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
| Contact Finish | Gold |
| Number of Rows | 1 |
| Contact Material | Copper Alloy |
| Termination Rows | 1 |
| Base Product Number | 745-052 |
| Number of Positions | 52 |
| Material - Insulation | Polyester Thermoplastic |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions/Bay/Row | 52 |
