EDAC Inc. 570-001-420-101

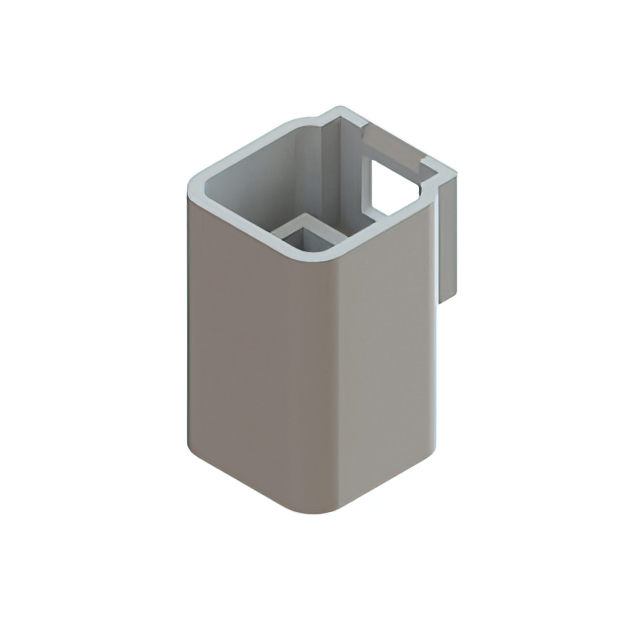

EDAC Inc. 570-001-420-101 electronic component

Image shown is a representation only

Manufacturer
EDAC Inc.
Manufacturer No
570-001-420-101
Packaging
Bulk
Description
CONN HEADER VERT 1POS
Detailed Description
Connector Header Through Hole 1 position
Datasheet
ISO 13485 certification
ISO 14001 certification
Five-Star Service certification
UKAS management certification
IAF recognition arrangement certification
Mfr
EDAC Inc.
Style
Board to Cable/Wire
Series
570
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose
Contact Type
Male Pin
Mounting Type
Through Hole
Connector Type
Plug
Fastening Type
Latch Holder
Number of Rows
1
Voltage Rating
300V
Contact Material
Brass
Insulation Height
0.768" (19.50mm)
Ingress Protection
IP67 - Dust Tight, Waterproof
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
1
Current Rating (Amps)
10A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
AttributeValue
MfrEDAC Inc.
StyleBoard to Cable/Wire
Series570
PackagingBulk
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose
Contact TypeMale Pin
Mounting TypeThrough Hole
Connector TypePlug
Fastening TypeLatch Holder
Number of Rows1
Voltage Rating300V
Contact MaterialBrass
Insulation Height0.768" (19.50mm)
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Number of Positions1
Current Rating (Amps)10A
Operating Temperature-40°C ~ 105°C
Contact Finish - MatingTin
Number of Positions LoadedAll
Material Flammability RatingUL94 V-0
