Step1: Product
EDAC Inc. 566-002-420-101

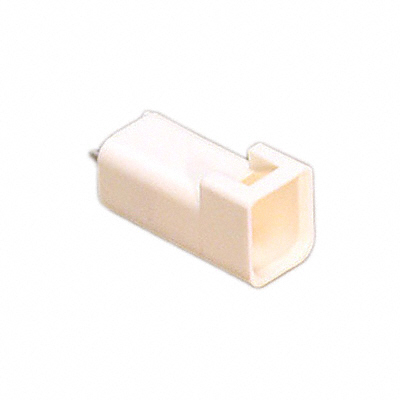

Image shown is a representation only
Manufacturer
Manufacturer No
566-002-420-101
Packaging
Bulk
Description
CONN HEADER VERT 2POS 2MM
Detailed Description
Connector Header Through Hole 2 position 0.079" (2.00mm)
DataSheet
Mfr
EDAC Inc.
Style
Board to Cable/Wire
Series
566
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Obsolete
Termination
Solder
Applications
Automotive, General Purpose
Contact Type
Male Pin
Mounting Type
Through Hole
Connector Type
Plug
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
250V
Contact Material
Brass
Insulation Height
0.618" (15.70mm)
Ingress Protection
IP67 - Dust Tight, Waterproof
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
2
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | EDAC Inc. |
| Style | Board to Cable/Wire |
| Series | 566 |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Obsolete |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Male Pin |
| Mounting Type | Through Hole |
| Connector Type | Plug |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 250V |
| Contact Material | Brass |
| Insulation Height | 0.618" (15.70mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 2 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
