Step1: Product
EDAC Inc. 519-036-541-450

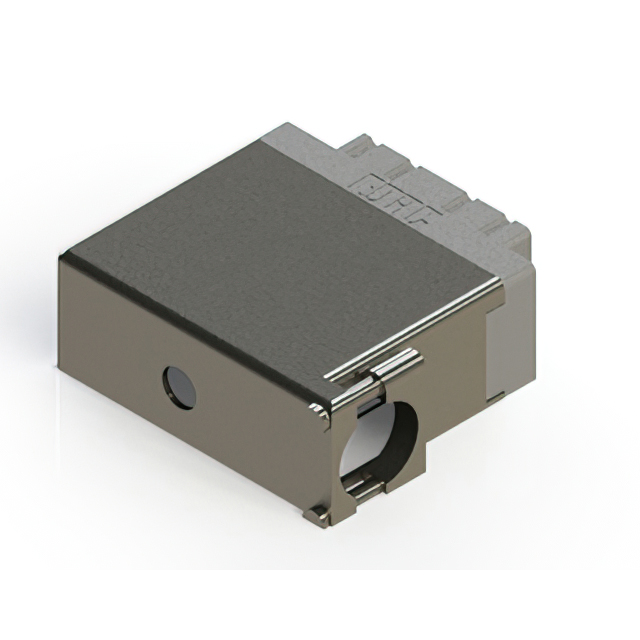

Image shown is a representation only
Manufacturer
Manufacturer No
519-036-541-450
Packaging
Bulk
Description
519 SERIES RACK & PANEL CONNECTO
Detailed Description
36 Connector Receptacle, Hermaphroditic Contacts Free Hanging (In-Line) Gray Rack and Panel
DataSheet
Color
Gray
Pitch
0.150" (3.81mm)
Series
519
Features
Jackscrew, Guide Pin
Packaging
Bulk
Part Status
Active
Termination
Wire Wrap
Manufacturer
EDAC Inc.
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Hermaphroditic Contacts
Contact Finish
Gold
Number of Rows
5
Connector Style
Rack and Panel
Connector Usage
Backplane
Number of Columns
9
Number of Positions
36
Current Rating (Amps)
8.5A
Operating Temperature
-40°C ~ 105°C
Contact Finish Thickness
10.0µin (0.25µm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Gray |
| Pitch | 0.150" (3.81mm) |
| Series | 519 |
| Features | Jackscrew, Guide Pin |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Wire Wrap |
| Manufacturer | EDAC Inc. |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Hermaphroditic Contacts |
| Contact Finish | Gold |
| Number of Rows | 5 |
| Connector Style | Rack and Panel |
| Connector Usage | Backplane |
| Number of Columns | 9 |
| Number of Positions | 36 |
| Current Rating (Amps) | 8.5A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
