Step1: Product

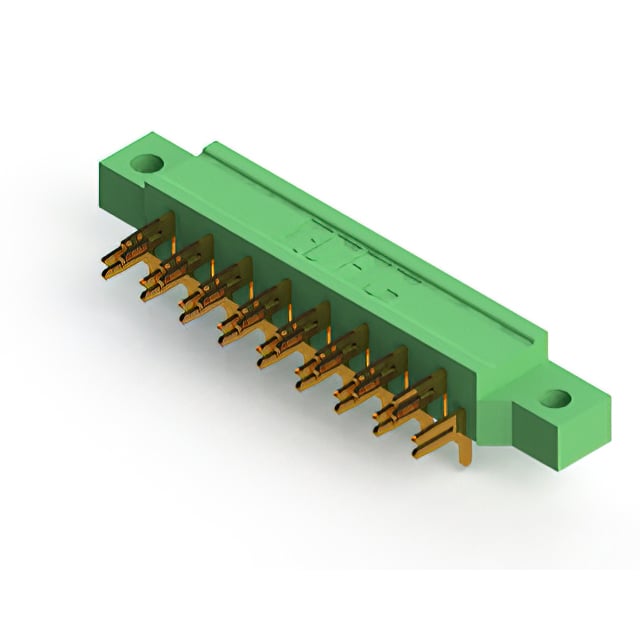

EDAC Inc. 421-017-520-102
Image shown is a representation only
Manufacturer
Manufacturer No
421-017-520-102
Packaging
Bulk
Description
CONN EDGE DUAL FMALE 17POS 0.200
Detailed Description
17 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
DataSheet
Color
Green
Pitch
0.200" (5.08mm)
Gender
Female
Series
421
Card Type
Non Specified - Dual Edge
Packaging
Bulk
Part Status
Active
Termination
Solder
Manufacturer
EDAC Inc.
Mounting Type
Through Hole, Right Angle
Card Thickness
0.062" ~ 0.093" (1.57mm ~ 2.36mm)
Contact Finish
Gold
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Number of Rows
2
Contact Material
Copper Alloy
Termination Rows
2
Base Product Number
421-017
Number of Positions
17
Material - Insulation
Diallyl Phthalate (DAP)
Operating Temperature
-65°C ~ 125°C
Contact Finish Thickness
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Color | Green |
| Pitch | 0.200" (5.08mm) |
| Gender | Female |
| Series | 421 |
| Card Type | Non Specified - Dual Edge |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | EDAC Inc. |
| Mounting Type | Through Hole, Right Angle |
| Card Thickness | 0.062" ~ 0.093" (1.57mm ~ 2.36mm) |
| Contact Finish | Gold |
| Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Termination Rows | 2 |
| Base Product Number | 421-017 |
| Number of Positions | 17 |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Operating Temperature | -65°C ~ 125°C |
| Contact Finish Thickness | 10.0µin (0.25µm) |
