Step1: Product

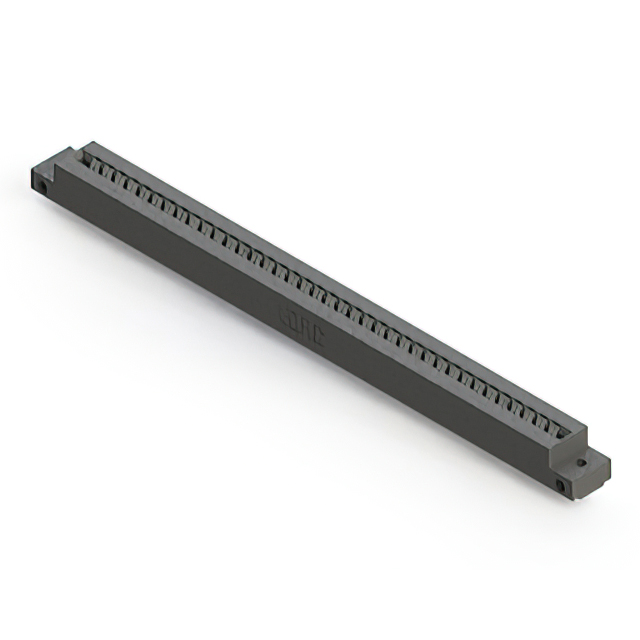

EDAC Inc. 356-038-421-112
Image shown is a representation only
Manufacturer
Manufacturer No
356-038-421-112
Packaging
Bulk
Description
CONN EDGE DUAL FMALE 76POS 0.156
Detailed Description
76 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
DataSheet
Color
Black
Pitch
0.156" (3.96mm)
Gender
Female
Series
356
Read Out
Dual
Card Type
Non Specified - Dual Edge
Packaging
Bulk
Part Status
Active
Termination
Solder
Contact Type
Cantilever
Manufacturer
EDAC Inc.
Mounting Type
Panel Mount, Through Hole
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Finish
Tin
Flange Feature
Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Number of Rows
2
Contact Material
Copper Alloy
Termination Rows
1
Base Product Number
356-038
Number of Positions
76
Material - Insulation
Polyester Thermoplastic
Operating Temperature
-40°C ~ 105°C
Number of Positions/Bay/Row
38
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.156" (3.96mm) |
| Gender | Female |
| Series | 356 |
| Read Out | Dual |
| Card Type | Non Specified - Dual Edge |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Cantilever |
| Manufacturer | EDAC Inc. |
| Mounting Type | Panel Mount, Through Hole |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
| Contact Finish | Tin |
| Flange Feature | Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Termination Rows | 1 |
| Base Product Number | 356-038 |
| Number of Positions | 76 |
| Material - Insulation | Polyester Thermoplastic |
| Operating Temperature | -40°C ~ 105°C |
| Number of Positions/Bay/Row | 38 |
