Step1: Product
EDAC Inc. 317-068-540-878

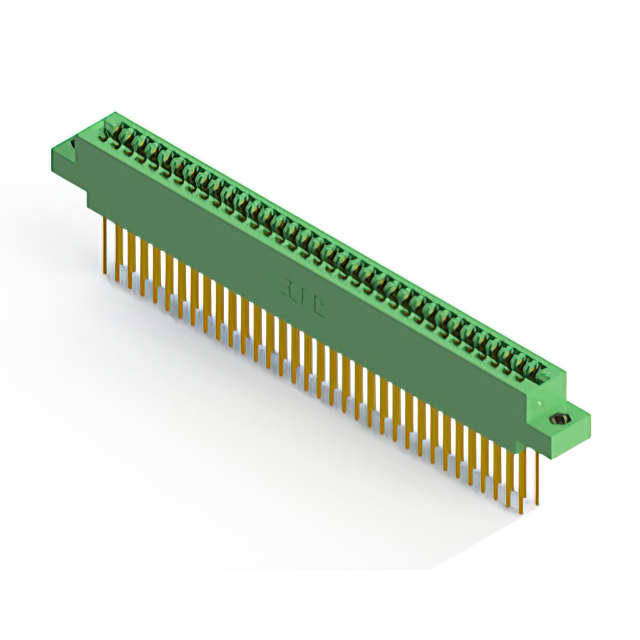

Image shown is a representation only
Manufacturer
Manufacturer No
317-068-540-878
Packaging
Bulk
Description
CONN EDGE DUAL FMALE 68POS 0.156
Detailed Description
68 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
Datasheet
Color
Green
Pitch
0.156" (3.96mm)
Gender
Female
Series
317
Features
Card Guides
Read Out
Dual
Card Type
Non Specified - Dual Edge
Packaging
Bulk
Termination
Wire Wrap
Contact Type
Cantilever
Manufacturer
EDAC Inc.
Mounting Type
Through Hole
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Finish
Gold
Flange Feature
Top Mount Opening, Threaded Insert, 4-40
Number of Rows
2
Contact Material
Copper Alloy
Base Product Number
317-068
Number of Positions
68
Material - Insulation
Diallyl Phthalate (DAP)
Operating Temperature
-65°C ~ 125°C
Contact Finish Thickness
10.0µin (0.25µm)
Number of Positions/Bay/Row
34
| Attribute | Value |
|---|---|
| Color | Green |
| Pitch | 0.156" (3.96mm) |
| Gender | Female |
| Series | 317 |
| Features | Card Guides |
| Read Out | Dual |
| Card Type | Non Specified - Dual Edge |
| Packaging | Bulk |
| Termination | Wire Wrap |
| Contact Type | Cantilever |
| Manufacturer | EDAC Inc. |
| Mounting Type | Through Hole |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
| Contact Finish | Gold |
| Flange Feature | Top Mount Opening, Threaded Insert, 4-40 |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Base Product Number | 317-068 |
| Number of Positions | 68 |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Operating Temperature | -65°C ~ 125°C |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Number of Positions/Bay/Row | 34 |
