Step1: Product

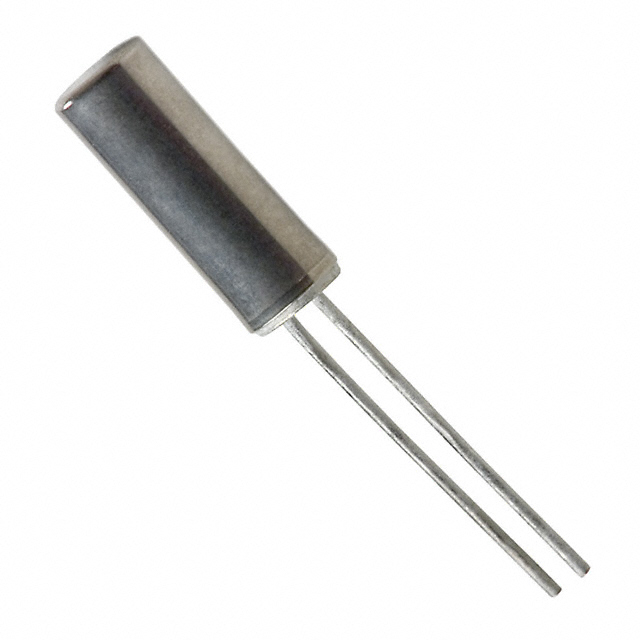

ECS Inc. ECS-3X8
Image shown is a representation only
Manufacturer
Manufacturer No
ECS-3X8
Quantity
631
Availability
In Stock
Package
Cylindrical Can, Radial
Packaging
Bulk
Description
CRYSTAL 32.7680KHZ 12.5PF TH
Detailed Description
32.768 kHz ±20ppm Crystal 12.5pF 35 kOhms Cylindrical Can, Radial
DataSheet
Mfr
ECS Inc.
Type
kHz Crystal (Tuning Fork)
Series
ECS-3X8
Frequency
32.768 kHz
Packaging
Bulk
Part Status
Not For New Designs
Mounting Type
Through Hole
Operating Mode
Fundamental
Package / Case
Cylindrical Can, Radial
Load Capacitance
12.5pF
Size / Dimension
0.122" Dia x 0.323" L (3.10mm x 8.20mm)
Frequency Tolerance
±20ppm
Height - Seated (Max)
0.323" (8.20mm)
Operating Temperature
-10°C ~ 60°C
ESR (Equivalent Series Resistance)
35 kOhms
| Attribute | Value |
|---|---|
| Mfr | ECS Inc. |
| Type | kHz Crystal (Tuning Fork) |
| Series | ECS-3X8 |
| Frequency | 32.768 kHz |
| Packaging | Bulk |
| Part Status | Not For New Designs |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Package / Case | Cylindrical Can, Radial |
| Load Capacitance | 12.5pF |
| Size / Dimension | 0.122" Dia x 0.323" L (3.10mm x 8.20mm) |
| Frequency Tolerance | ±20ppm |
| Height - Seated (Max) | 0.323" (8.20mm) |
| Operating Temperature | -10°C ~ 60°C |
| ESR (Equivalent Series Resistance) | 35 kOhms |
