Step1: Product
Eaton - Electronics Division PTSA080515V012

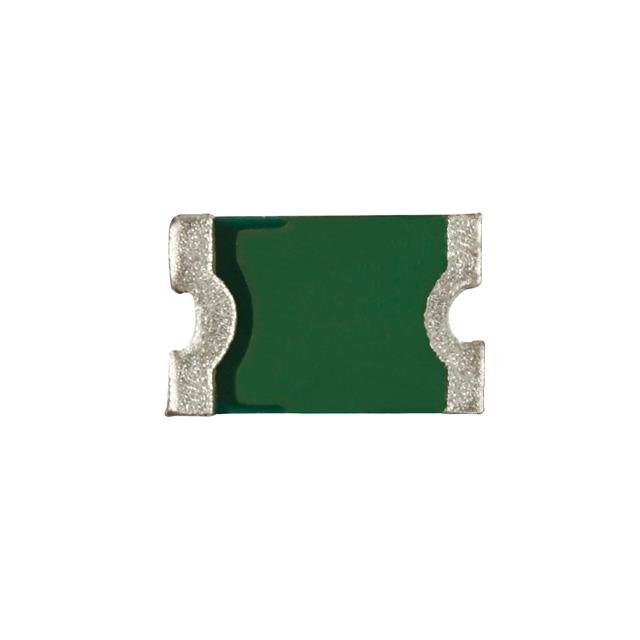

Image shown is a representation only
Manufacturer
Manufacturer No
PTSA080515V012
Quantity
100
Availability
In Stock
Package
0805 (2012 Metric), Concave
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
PTC RESET FUSE 120MA 15V 0805
Detailed Description
PTC Resettable Fuse 15V 120 mA Ih Surface Mount 0805 (2012 Metric), Concave
Datasheet
Grade
Automotive
Series
PTSA0805
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
Eaton - Electronics Division
Time to Trip
500 ms
Current - Max
20 A
Mounting Type
Surface Mount
Qualification
AEC-Q200
Voltage - Max
15V
Package / Case
0805 (2012 Metric), Concave
Approval Agency
UL
Thickness (Max)
0.039" (1.00mm)
Size / Dimension
0.089" L x 0.059" W (2.25mm x 1.50mm)
Current - Trip (It)
300 mA
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
120 mA
Resistance - Initial (Ri) (Min)
400 mOhms
Resistance - Post Trip (R1) (Max)
9 Ohms
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Series | PTSA0805 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | Eaton - Electronics Division |
| Time to Trip | 500 ms |
| Current - Max | 20 A |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q200 |
| Voltage - Max | 15V |
| Package / Case | 0805 (2012 Metric), Concave |
| Approval Agency | UL |
| Thickness (Max) | 0.039" (1.00mm) |
| Size / Dimension | 0.089" L x 0.059" W (2.25mm x 1.50mm) |
| Current - Trip (It) | 300 mA |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 120 mA |
| Resistance - Initial (Ri) (Min) | 400 mOhms |
| Resistance - Post Trip (R1) (Max) | 9 Ohms |
