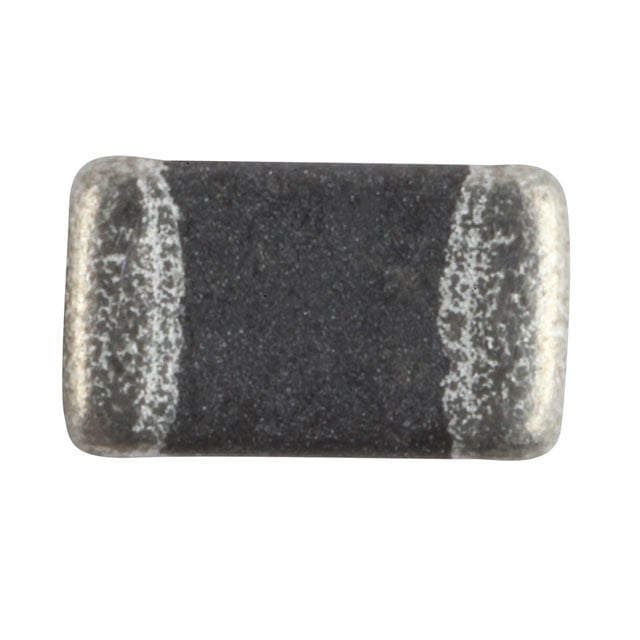

Eaton - Electronics Division MCL2012V1-120-R
Image shown is a representation only
Manufacturer
Manufacturer No
MCL2012V1-120-R
Package
0805 (2012 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 12UH 100MA 650 MOHM
Detailed Description
12 µH Unshielded Multilayer Inductor 100 mA 650mOhm Max 0805 (2012 Metric)
DataSheet
Mfr
Eaton - Electronics Division
Type
Multilayer
Series
MCL2012V1
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±20%
Inductance
12 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
0805 (2012 Metric)
Size / Dimension
0.079" L x 0.047" W (2.00mm x 1.20mm)
DC Resistance (DCR)
650mOhm Max
Current Rating (Amps)
100 mA
Height - Seated (Max)
0.043" (1.10mm)
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
0805
Frequency - Self Resonant
22MHz
Inductance Frequency - Test
1 MHz
| Attribute | Value |
|---|---|
| Mfr | Eaton - Electronics Division |
| Type | Multilayer |
| Series | MCL2012V1 |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 12 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| DC Resistance (DCR) | 650mOhm Max |
| Current Rating (Amps) | 100 mA |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 0805 |
| Frequency - Self Resonant | 22MHz |
| Inductance Frequency - Test | 1 MHz |
