Step1: Product

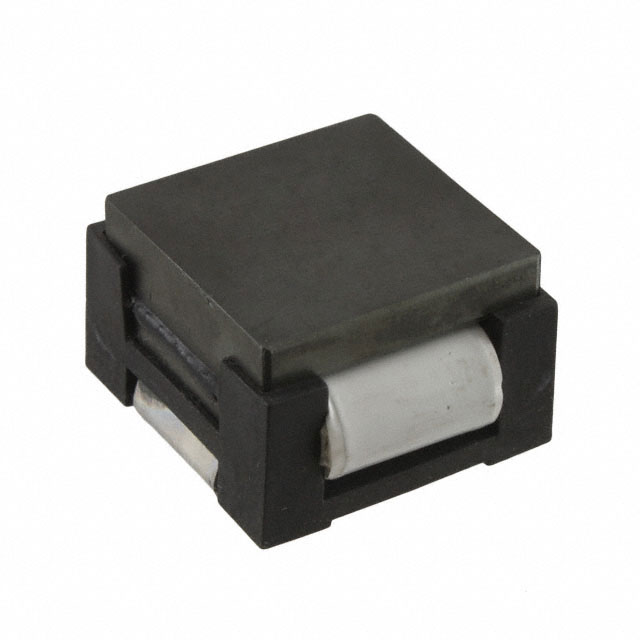

Eaton - Electronics Division HC3-4R7-R
Image shown is a representation only
Manufacturer
Manufacturer No
HC3-4R7-R
Package
Nonstandard
Packaging
Bulk
Description
FIXED IND 4.7UH 33.8A 2.17 MOHM
Detailed Description
4.7 µH Unshielded Drum Core, Wirewound Inductor 33.8 A 2.17mOhm Max Nonstandard
DataSheet
Mfr
Eaton - Electronics Division
Type
Drum Core, Wirewound
Series
HC3
Packaging
Bulk
Shielding
Unshielded
Tolerance
±20%
Inductance
4.7 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
1.181" L x 0.996" W (30.00mm x 25.30mm)
DC Resistance (DCR)
2.17mOhm Max
Current Rating (Amps)
33.8 A
Height - Seated (Max)
0.689" (17.50mm)
Operating Temperature
-40°C ~ 85°C
Current - Saturation (Isat)
38A
Inductance Frequency - Test
300 kHz
| Attribute | Value |
|---|---|
| Mfr | Eaton - Electronics Division |
| Type | Drum Core, Wirewound |
| Series | HC3 |
| Packaging | Bulk |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 4.7 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 1.181" L x 0.996" W (30.00mm x 25.30mm) |
| DC Resistance (DCR) | 2.17mOhm Max |
| Current Rating (Amps) | 33.8 A |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| Current - Saturation (Isat) | 38A |
| Inductance Frequency - Test | 300 kHz |
