Step1: Product

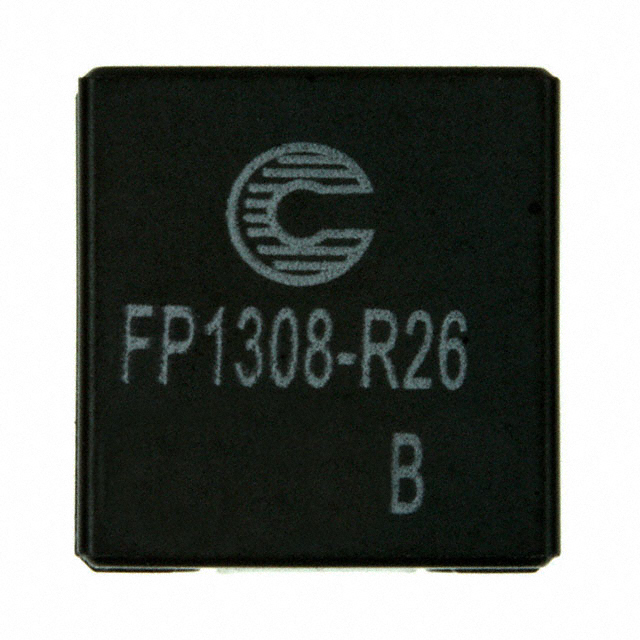

Eaton - Electronics Division FP1308-R26-R
Image shown is a representation only
Manufacturer
Manufacturer No
FP1308-R26-R
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
FIXED IND 260NH 68A 0.24 MOHM
Detailed Description
260 nH Unshielded Drum Core, Wirewound Inductor 68 A 0.24mOhm Max Nonstandard
DataSheet
Mfr
Eaton - Electronics Division
Type
Drum Core, Wirewound
Series
FLAT-PAC, FP1308
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±10%
Inductance
260 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
0.539" L x 0.510" W (13.70mm x 12.95mm)
DC Resistance (DCR)
0.24mOhm Max
Current Rating (Amps)
68 A
Height - Seated (Max)
0.315" (8.00mm)
Operating Temperature
-40°C ~ 125°C
Current - Saturation (Isat)
60A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Eaton - Electronics Division |
| Type | Drum Core, Wirewound |
| Series | FLAT-PAC, FP1308 |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 260 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.539" L x 0.510" W (13.70mm x 12.95mm) |
| DC Resistance (DCR) | 0.24mOhm Max |
| Current Rating (Amps) | 68 A |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Saturation (Isat) | 60A |
| Inductance Frequency - Test | 100 kHz |
