Step1: Product
Eaton - Electronics Division DR127-2R2-R

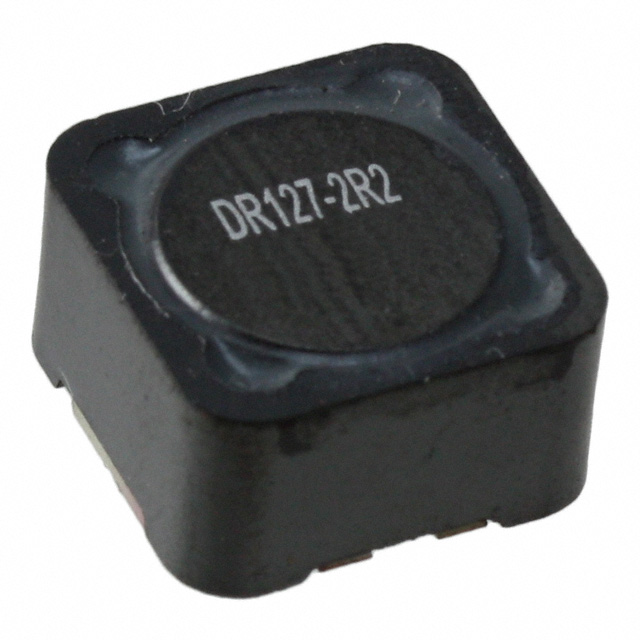

Image shown is a representation only
Manufacturer
Manufacturer No
DR127-2R2-R
Quantity
81
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FIXED IND 2.2UH 12.5A 4.02 MOHM
Detailed Description
2.2 µH Shielded Drum Core, Wirewound Inductor 12.5 A 4.02mOhm Nonstandard
DataSheet
Mfr
Eaton - Electronics Division
Type
Drum Core, Wirewound
Series
DR
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Tolerance
±20%
Inductance
2.2 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
0.492" L x 0.492" W (12.50mm x 12.50mm)
DC Resistance (DCR)
4.02mOhm
Current Rating (Amps)
12.5 A
Height - Seated (Max)
0.315" (8.00mm)
Operating Temperature
-40°C ~ 125°C
Current - Saturation (Isat)
25.5A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Eaton - Electronics Division |
| Type | Drum Core, Wirewound |
| Series | DR |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 2.2 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| DC Resistance (DCR) | 4.02mOhm |
| Current Rating (Amps) | 12.5 A |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Saturation (Isat) | 25.5A |
| Inductance Frequency - Test | 100 kHz |
