Step1: Product

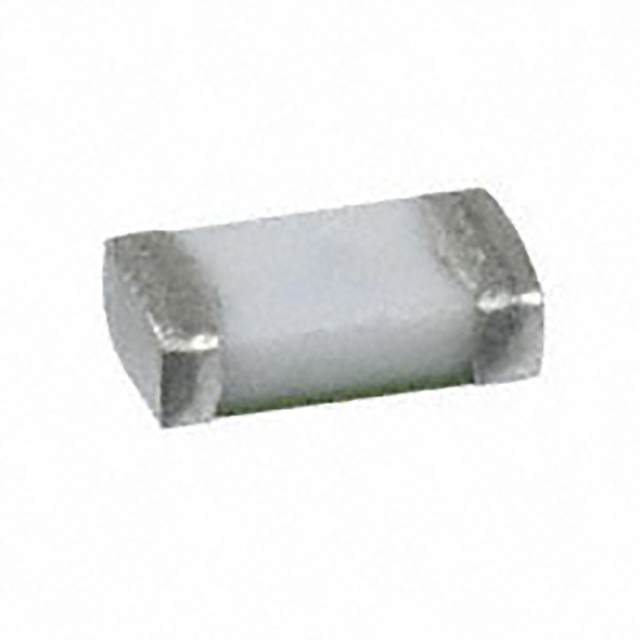

Eaton - Electronics Division CC12M20A
Image shown is a representation only
Manufacturer
Manufacturer No
CC12M20A
Package
1206 (3216 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FUSE CARTRIDGE 20A 600VAC/300VDC
Detailed Description
20 A 24 V Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
Mfr
Eaton - Electronics Division
Series
CC12M
Fuse Type
Board Mount (Cartridge Style Excluded)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Melting I²t
48.6
Mounting Type
Surface Mount
Package / Case
1206 (3216 Metric)
Approval Agency
cURus, UL
Size / Dimension
0.126" L x 0.063" W x 0.035" H (3.20mm x 1.60mm x 0.89mm)
DC Cold Resistance
0.002 Ohms
Voltage Rating - DC
24 V
Current Rating (Amps)
20 A
Operating Temperature
-55°C ~ 125°C
Breaking Capacity @ Rated Voltage
150A
| Attribute | Value |
|---|---|
| Mfr | Eaton - Electronics Division |
| Series | CC12M |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Melting I²t | 48.6 |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Approval Agency | cURus, UL |
| Size / Dimension | 0.126" L x 0.063" W x 0.035" H (3.20mm x 1.60mm x 0.89mm) |
| DC Cold Resistance | 0.002 Ohms |
| Voltage Rating - DC | 24 V |
| Current Rating (Amps) | 20 A |
| Operating Temperature | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 150A |
