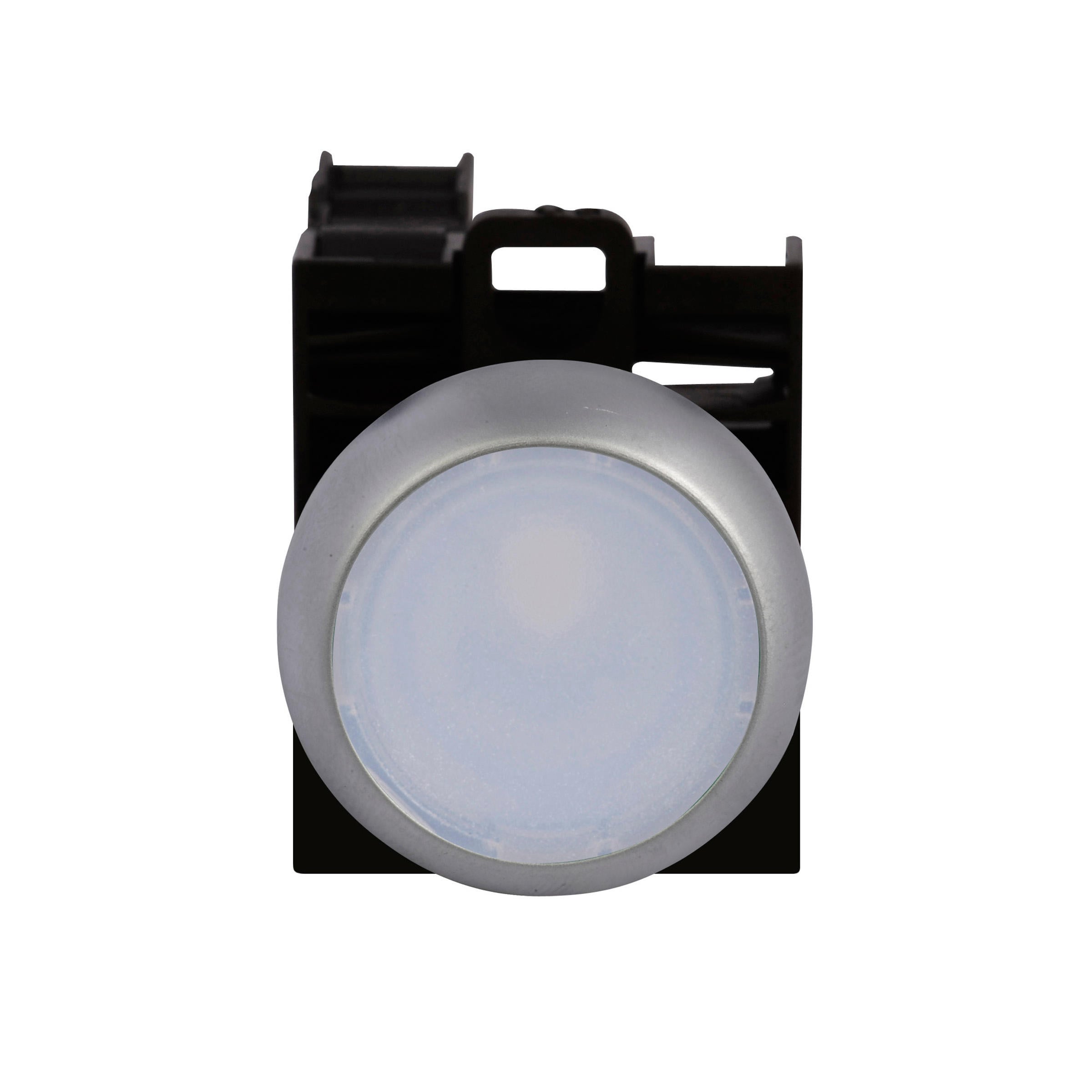

Eaton Electrical M22-DL-W-K11-230W
Image shown is a representation only
Manufacturer
Manufacturer No
M22-DL-W-K11-230W
Packaging
Bulk
Description
ILL MOM PB SIL-BZL FLSH WHT 85-2
Detailed Description
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
DataSheet
Mfr
Eaton Electrical
Type
Standard, Illuminated
Series
M22
Circuit
DPST-NO/NC
Packaging
Bulk
Part Status
Active
Actuator Type
Round, Button, Flush
Mounting Type
Panel Mount, Front
Electrical Life
1,000,000 Cycles
Switch Function
On-Mom, Off-Mom
Termination Style
Screw Terminal
Ingress Protection
IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Voltage Rating - AC
115 V
Voltage Rating - DC
24 V
Color - Actuator/Cap
White
Current Rating (Amps)
6A (AC), 3A (DC)
Operating Temperature
-25°C ~ 70°C
Panel Cutout Dimensions
Circular - 22.50mm Dia
Illumination Type, Color
LED, White
Illumination Voltage (Nominal)
85 ~ 264 VAC
| Attribute | Value |
|---|---|
| Mfr | Eaton Electrical |
| Type | Standard, Illuminated |
| Series | M22 |
| Circuit | DPST-NO/NC |
| Packaging | Bulk |
| Part Status | Active |
| Actuator Type | Round, Button, Flush |
| Mounting Type | Panel Mount, Front |
| Electrical Life | 1,000,000 Cycles |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Ingress Protection | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 24 V |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 6A (AC), 3A (DC) |
| Operating Temperature | -25°C ~ 70°C |
| Panel Cutout Dimensions | Circular - 22.50mm Dia |
| Illumination Type, Color | LED, White |
| Illumination Voltage (Nominal) | 85 ~ 264 VAC |
