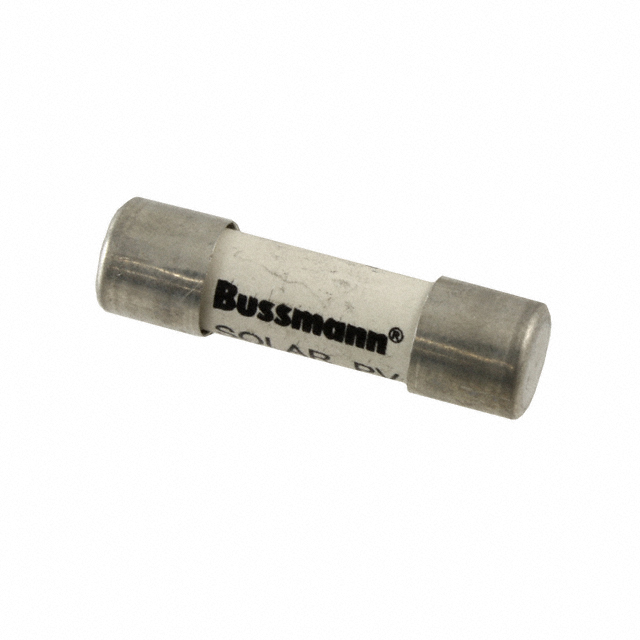

Eaton - Bussmann Electrical Division PV-3A10F
Image shown is a representation only
Manufacturer
Manufacturer No
PV-3A10F
Package
5AG, 10mm x 38mm (Midget)
Packaging
Bulk
Description
FUSE CARTRIDGE 3A 1KVDC 5AG
Detailed Description
3A 1 kVDC Fuse Cartridge Requires Holder
DataSheet
Series
PV
Fuse Type
Cartridge
Packaging
Bulk
Part Status
Active
Applications
Solar (Photovoltaic)
Manufacturer
Eaton - Bussmann Electrical Division
Melting I²t
4.0
Mounting Type
Requires Holder
Package / Case
5AG, 10mm x 38mm (Midget)
Approval Agency
CCC, CSA, UL
Size / Dimension
0.406" Dia x 1.496" L (10.30mm x 38.00mm)
Voltage Rating - DC
1 kVDC
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 90°C
Breaking Capacity @ Rated Voltage
50kA
| Attribute | Value |
|---|---|
| Series | PV |
| Fuse Type | Cartridge |
| Packaging | Bulk |
| Part Status | Active |
| Applications | Solar (Photovoltaic) |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Melting I²t | 4.0 |
| Mounting Type | Requires Holder |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Approval Agency | CCC, CSA, UL |
| Size / Dimension | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) |
| Voltage Rating - DC | 1 kVDC |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 90°C |
| Breaking Capacity @ Rated Voltage | 50kA |
