Step1: Product

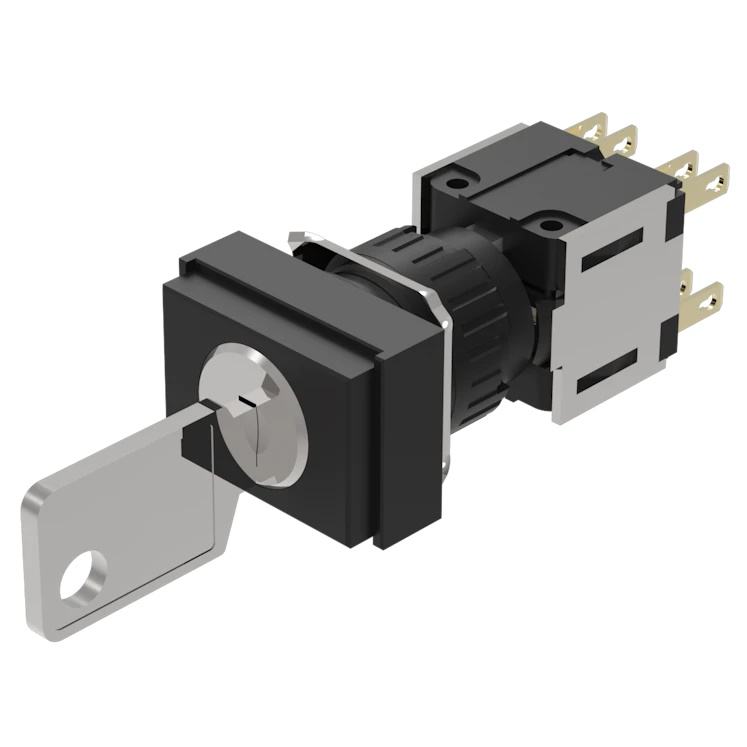

EAO 51-365.F22D
Image shown is a representation only
Manufacturer
Manufacturer No
51-365.F22D
Packaging
Bag
Description
ACTUATOR, 24 MM X 18 MM, 2 NC /
Detailed Description
Keylock Switch 3 Position 4PST-2NO/2NC 5A (AC) 250 VAC 24 VDC Panel Mount
DataSheet
Series
51
Circuit
4PST-2NO/2NC
Packaging
Bag
Part Status
Obsolete
Manufacturer
EAO
Actuator Type
Flat Key
Mounting Type
Panel Mount
Angle of Throw
42°, 90°
Contact Finish
Gold
Contact Timing
Not Specified
Mechanical Life
50,000 Cycles
Switch Function
On-Mom, Off-Mom
Contact Material
Silver (Ag)
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Depth Behind Flange
42.00mm
Number of Positions
3
Voltage Rating - AC
250 V
Voltage Rating - DC
24 V
Current Rating (Amps)
5A (AC)
Operating Temperature
-25°C ~ 55°C
Key Removable Positions
Left and Right
Panel Cutout Dimensions
Circular - 16.20mm Dia
| Attribute | Value |
|---|---|
| Series | 51 |
| Circuit | 4PST-2NO/2NC |
| Packaging | Bag |
| Part Status | Obsolete |
| Manufacturer | EAO |
| Actuator Type | Flat Key |
| Mounting Type | Panel Mount |
| Angle of Throw | 42°, 90° |
| Contact Finish | Gold |
| Contact Timing | Not Specified |
| Mechanical Life | 50,000 Cycles |
| Switch Function | On-Mom, Off-Mom |
| Contact Material | Silver (Ag) |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Depth Behind Flange | 42.00mm |
| Number of Positions | 3 |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
| Current Rating (Amps) | 5A (AC) |
| Operating Temperature | -25°C ~ 55°C |
| Key Removable Positions | Left and Right |
| Panel Cutout Dimensions | Circular - 16.20mm Dia |
