Step1: Product
E-Switch SV4F23SS-341

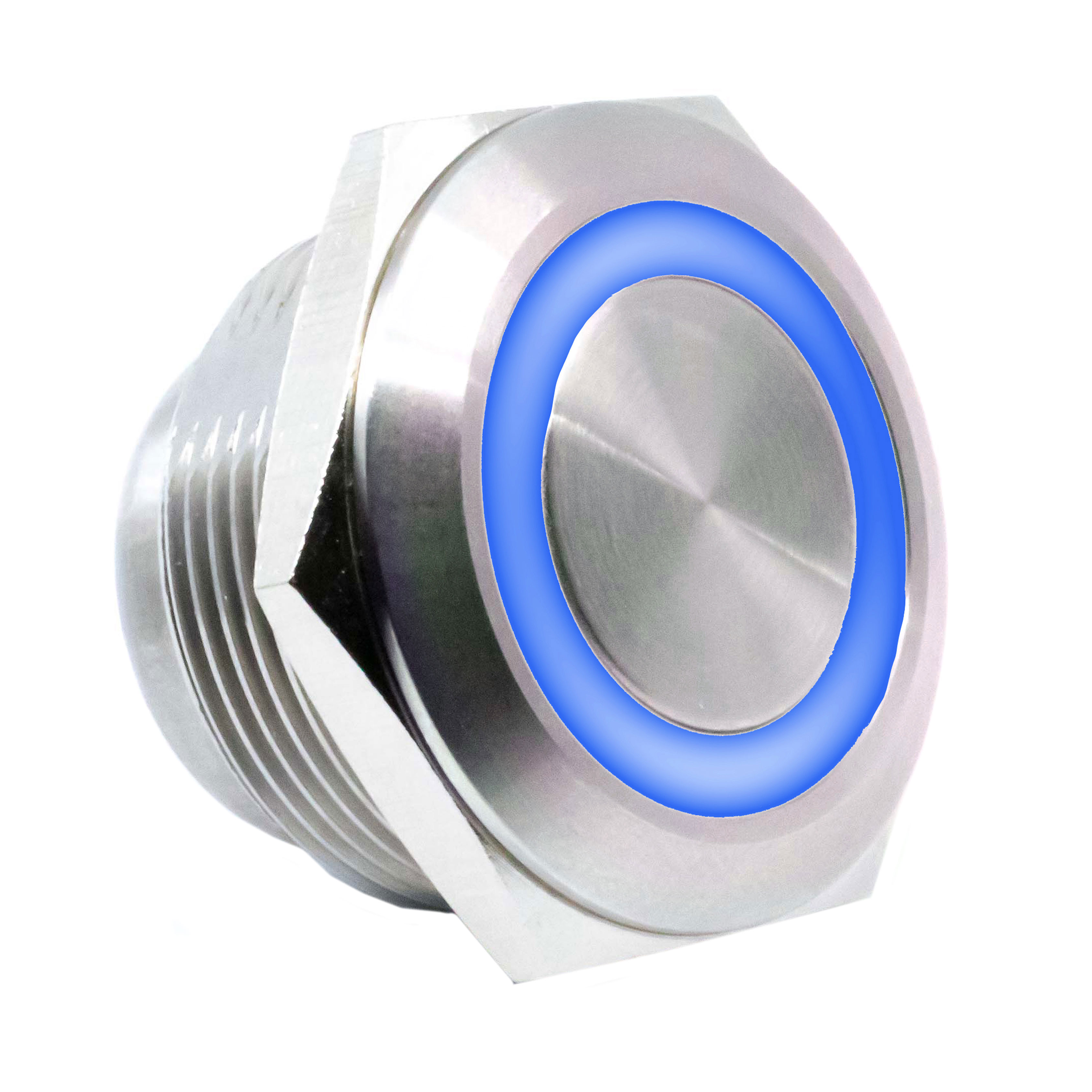

Image shown is a representation only
Manufacturer
Manufacturer No
SV4F23SS-341
Packaging
Bulk
Description
Switches
Detailed Description
Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
Datasheet
Mfr
E-Switch
Type
Anti-Vandal, Illuminated
Series
SV4
Circuit
SPST-NO
Packaging
Bulk
Actuator Type
Round, Button, Flush
Mounting Type
Panel Mount, Front
Electrical Life
200,000 Cycles
Mechanical Life
1,000,000 Cycles
Switch Function
Off-Mom
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection
IP67 - Dust Tight, Waterproof
Voltage Rating - DC
36 V
Color - Actuator/Cap
Silver
Current Rating (Amps)
2A (DC)
Operating Temperature
-20°C ~ 70°C
Panel Cutout Dimensions
Circular - 19.00mm Dia
Illumination Type, Color
LED, Blue
Illumination Voltage (Nominal)
3.1 VDC
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Type | Anti-Vandal, Illuminated |
| Series | SV4 |
| Circuit | SPST-NO |
| Packaging | Bulk |
| Actuator Type | Round, Button, Flush |
| Mounting Type | Panel Mount, Front |
| Electrical Life | 200,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Switch Function | Off-Mom |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Voltage Rating - DC | 36 V |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 2A (DC) |
| Operating Temperature | -20°C ~ 70°C |
| Panel Cutout Dimensions | Circular - 19.00mm Dia |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 3.1 VDC |
