Step1: Product

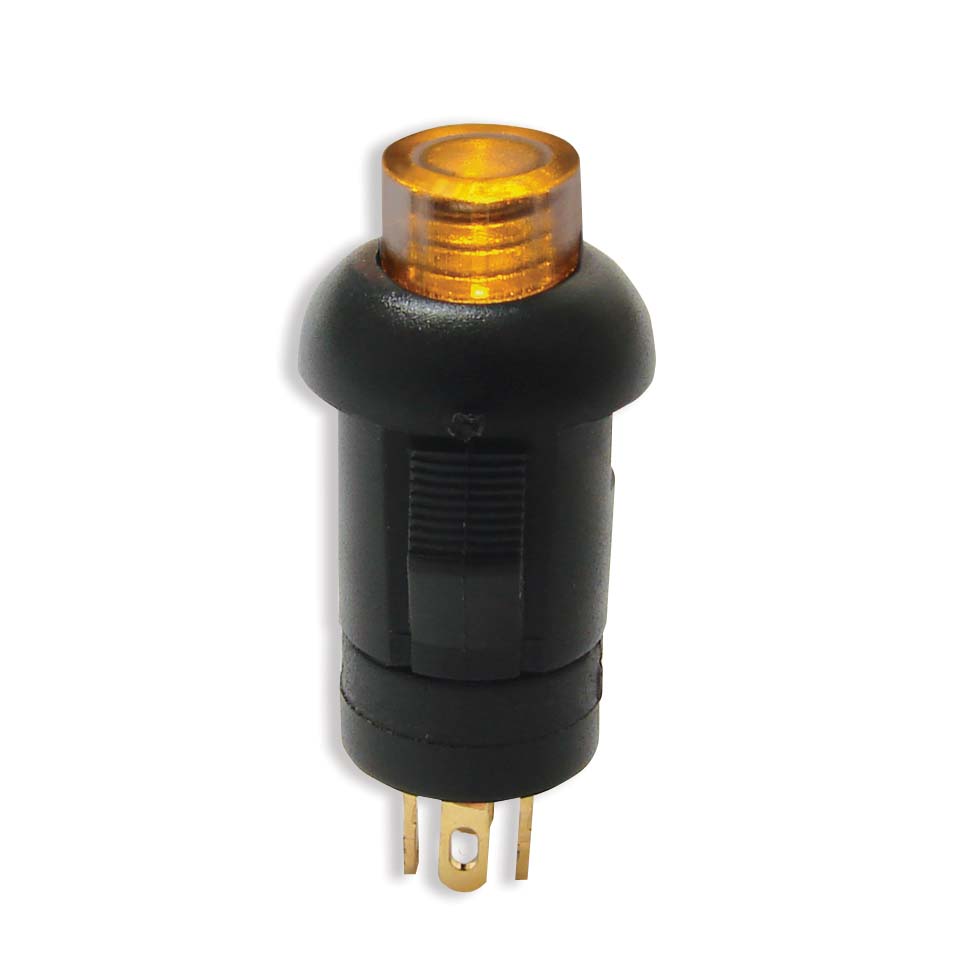

E-Switch LP1OA1AY
Image shown is a representation only
Manufacturer
Manufacturer No
LP1OA1AY
Packaging
Bulk
Description
SWITCH PUSH SPST-NO 0.1A 30V
Detailed Description
Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Snap-In
Datasheet
Mfr
E-Switch
Type
Standard, Illuminated
Series
LP1
Circuit
SPST-NO
Packaging
Bulk
Actuator Type
Round, Button
Mounting Type
Panel Mount, Snap-In
Electrical Life
50,000 Cycles
Mechanical Life
50,000 Cycles
Switch Function
Off-Mom
Actuator Marking
No Marking
Termination Style
Solder Lug
Base Product Number
LP1OA1
Voltage Rating - DC
30 V
Color - Actuator/Cap
Clear
Current Rating (Amps)
100mA (DC)
Operating Temperature
-40°C ~ 85°C
Panel Cutout Dimensions
Circular - 8.00mm Dia
Illumination Type, Color
LED, Yellow
Illumination Voltage (Nominal)
2.2 VDC
| Attribute | Value |
|---|---|
| Mfr | E-Switch |
| Type | Standard, Illuminated |
| Series | LP1 |
| Circuit | SPST-NO |
| Packaging | Bulk |
| Actuator Type | Round, Button |
| Mounting Type | Panel Mount, Snap-In |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Switch Function | Off-Mom |
| Actuator Marking | No Marking |
| Termination Style | Solder Lug |
| Base Product Number | LP1OA1 |
| Voltage Rating - DC | 30 V |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 100mA (DC) |
| Operating Temperature | -40°C ~ 85°C |
| Panel Cutout Dimensions | Circular - 8.00mm Dia |
| Illumination Type, Color | LED, Yellow |
| Illumination Voltage (Nominal) | 2.2 VDC |
